Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Lower Oil Pan - Remove and DISCARD - Lower Oil Pan Replacement
  3. Oil Pump Suction Pipe - Position aside - Oil Pump Suction Pipe and Screen Assembly Replacement

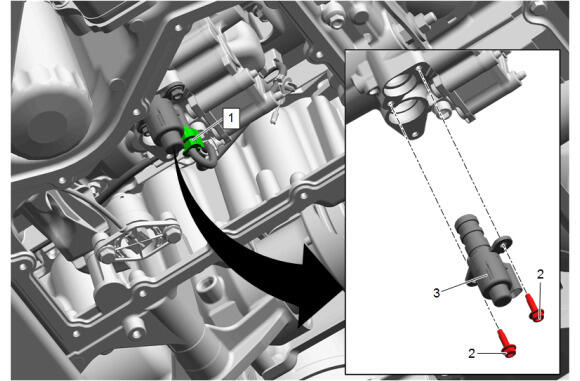

  4. GM5517409Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @Oil Pump Flow Control Valve - Disconnect

  5. Oil Pump Flow Control Valve Bolt (2) - Remove [2x]
  6. Oil Pump Flow Control Valve (3) - Remove
