Knock Sensor Wiring Harness Replacement - Bank 1
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

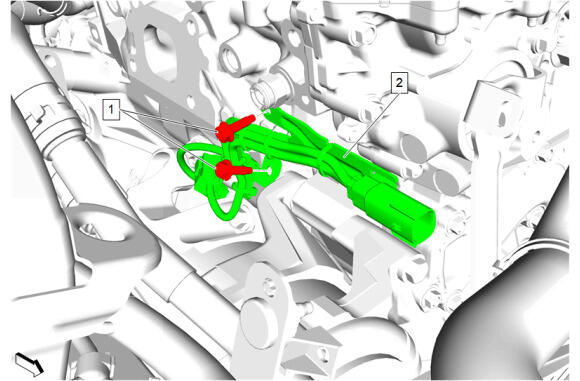

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Compressor Air Intake Turbocharger Replacement - Right Side |
|
| 1 | Knock Sensor Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Knock Sensor Wiring Harness Procedure Disconnect the electrical connectors. |
