Fuel Tank Filler Evaporative Emission Valve Hose Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

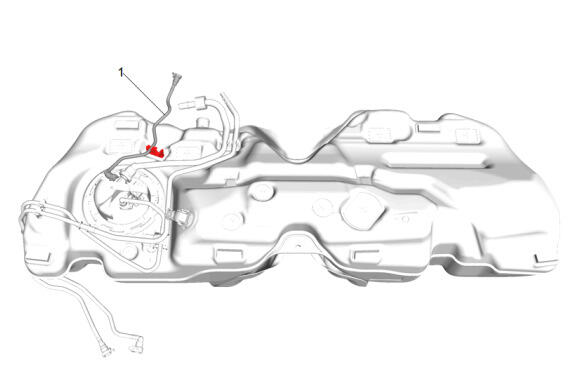

GM5514815Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement
1 Fuel Tank Filler Evaporative Emission Valve Hose
Procedure
Disconnect quick connect fitting and remove from the retainer. Plastic Collar Quick Connect Fitting Service
