Charge Air Cooler Inlet Air Hose Replacement - Left Side
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

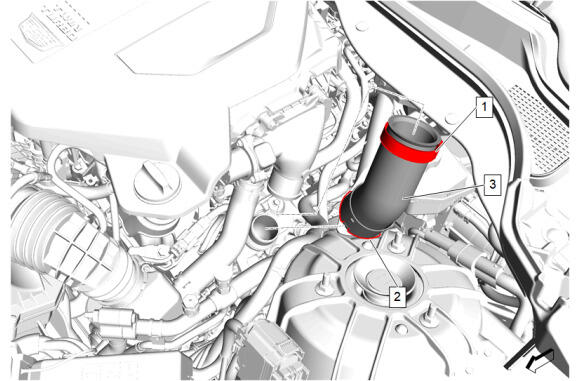

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Inlet Air Hose Clamp
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Charge Air Cooler Inlet Air Hose Retainer Spring |
| 3 | Charge Air Cooler Inlet Air Hose |
