Evaporative Emission Canister Purge Tube Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

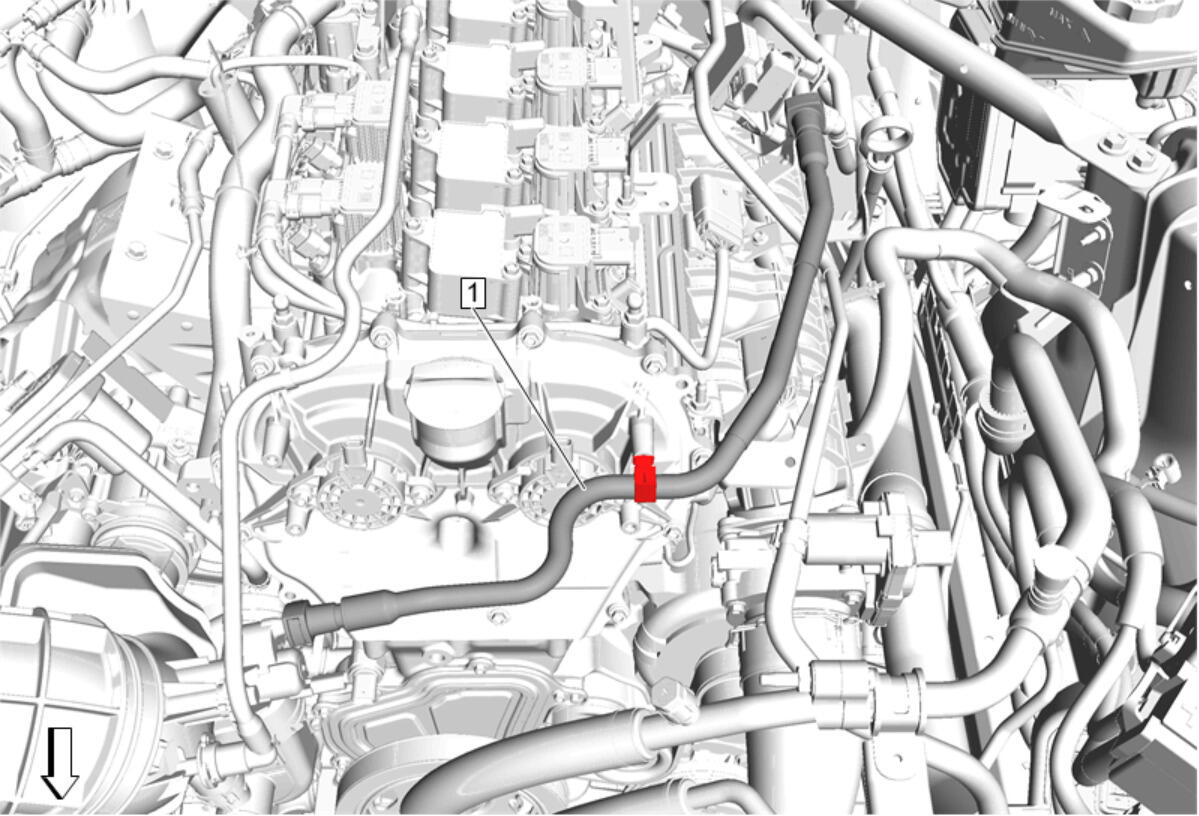

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Intake Manifold Cover Replacement
1	Evaporative Emission Canister Purge Tube Procedure Disconnect the quick disconnects and remove from the retainer. Plastic Collar Quick Connect Fitting Service
