Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement

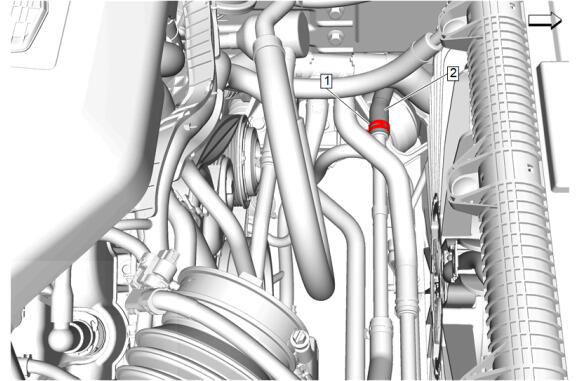

Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose (2) @Radiator Inlet Pipe - Remove
Charge Air Cooler Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Retainer (3) - Remove
- Radiator Inlet Pipe (2) - Remove
