Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Intake Manifold Cover (1) - Remove - Intake Manifold Cover Replacement
- Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)

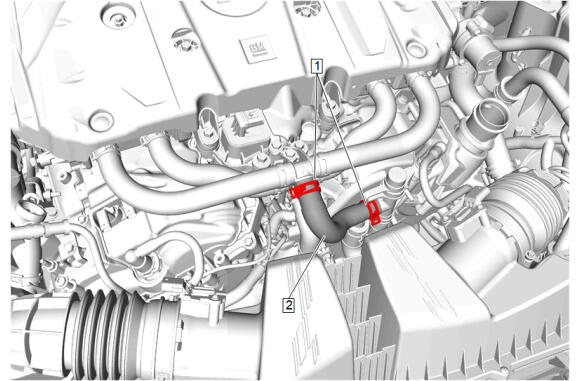

Charge Air Cooler Coolant Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Charge Air Cooler Coolant Hose (2) - Remove
