Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Front Brake Rotor - Remove - Front Brake Rotor Replacement (J56) , or Front Brake Rotor Replacement (JL9) , or Front Brake Rotor Replacement (J57) , or Front Brake Rotor Replacement (J6H)
Courtesy of GENERAL MOTORS COMPANY

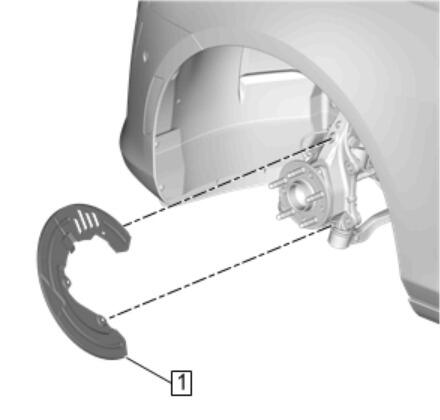

Front Brake Shield (1) - Remove - Front Brake Shield Replacement (JL9, J56) , or Front Brake Shield Replacement (J57, J6H)
Courtesy of GENERAL MOTORS COMPANY

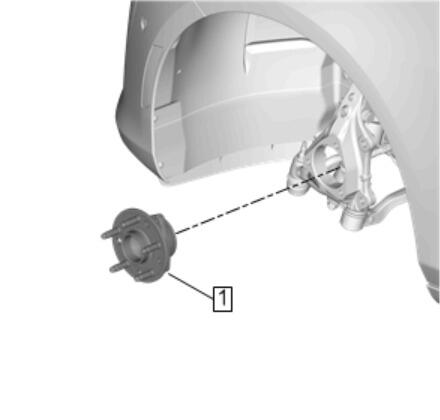

Front Wheel Hub (1) - Remove - Front Wheel Bearing and Hub Replacement (RWD)
Courtesy of GENERAL MOTORS COMPANY

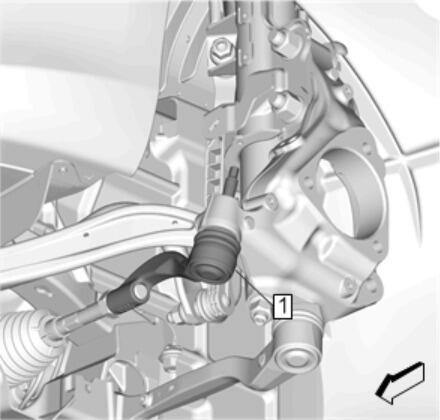

Steering Linkage Outer Tie Rod (1)@Steering Knuckle - Separate - Steering Linkage Outer Tie Rod Replacement (without Blackwing) , or Steering Linkage Outer Tie Rod Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

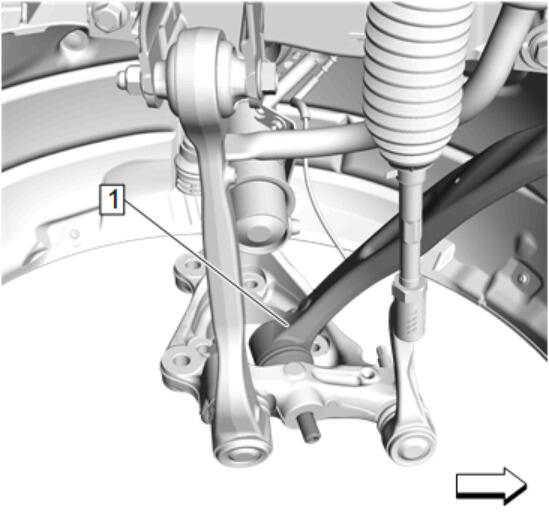

Front Lower Control Front Link (1)@Steering Knuckle - Separate - Front Lower Control Front Link Replacement (RWD)
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Rear Link (1)@Steering Knuckle - Separate - Front Lower Control Rear Link Replacement (RWD)
Courtesy of GENERAL MOTORS COMPANY

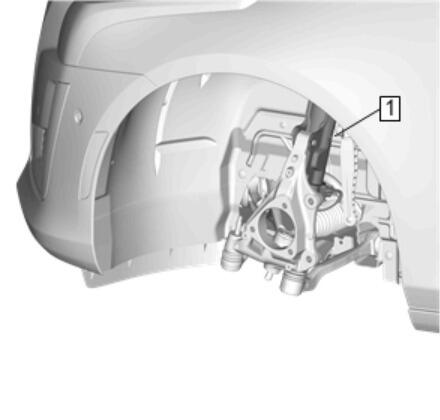

Front Suspension Strut (1)@Steering Knuckle - Separate - Strut Assembly Removal and Installation (FE2, FE3, witout F55) , or Strut Assembly Removal and Installation (FE3, FE4, with F55)
Courtesy of GENERAL MOTORS COMPANY

Steering Knuckle (1) - Remove
