Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector (1) - Remove - Front Bumper Fascia Center Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (1) - Remove - Front Compartment Air Deflector Replacement (RWD) , or Front Compartment Air Deflector Replacement (Blackwing)
If equipped, unclip the electronic suspension wheel front vertical accelerometer retainers from the front lower control front link. Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE2, FE3) , or Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE4)
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Brake Rotor Cooling Duct Deflector Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Brake Rotor Cooling Duct Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Using the CH-42188-B Ball Joint Separator (1), separate the front lower control front link from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Ball Stud Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

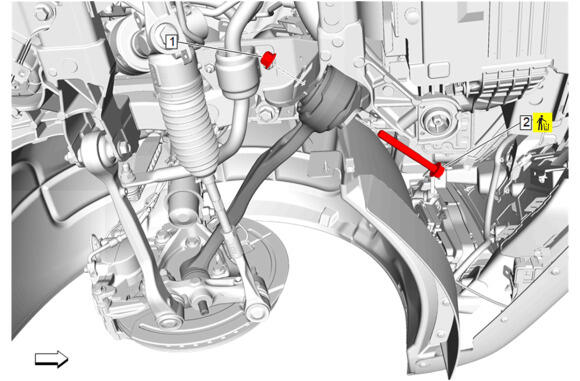

Front Lower Control Arm Front Nut (1) - Remove
Front Lower Control Arm Front Bolt (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Front Link (1) - Remove
