Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (3) - Remove - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (1) - Remove - Front Compartment Air Deflector Replacement (AWD) , or Front Compartment Air Deflector Replacement (RWD) , or Front Compartment Air Deflector Replacement (Blackwing)
If equipped, unclip the electronic suspension wheel front vertical accelerometer retainers from the front lower control front link. Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE2, FE3) , or Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE4)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Using the CH-43631 Ball Joint Separator (1), separate the front lower control front link from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Ball Stud Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

{with LGY} Reposition the engine auxiliary radiator assembly.
1. Charge Air Cooler Upper Bracket Nut (1) - Remove
2. Charge Air Cooler Bracket Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

{with LGY} Reposition the engine auxiliary radiator assembly.
1. Charge Air Cooler Bracket Bolt (1) - Remove [2x]
2. Reposition the charge air cooler assembly to gain access to the front lower control arm bolt.

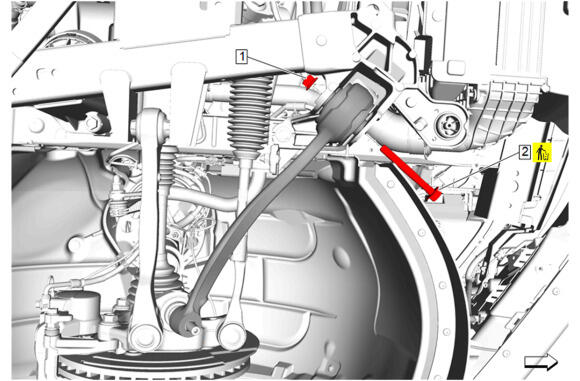

Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Front Nut (1) - Remove
Front Lower Control Arm Front Bolt (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Front Link (1) - Remove
