Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a suitable tool to compress the front brake caliper pistons into the front brake caliper.
  2. Apply approximately 0.09 - 0.15 g (0.003 - 0.005 oz)  of anti-seize lubricant to each end of the disc brake pad abutments which contact the brake caliper. Adhesives, Fluids, Lubricants, and Sealers

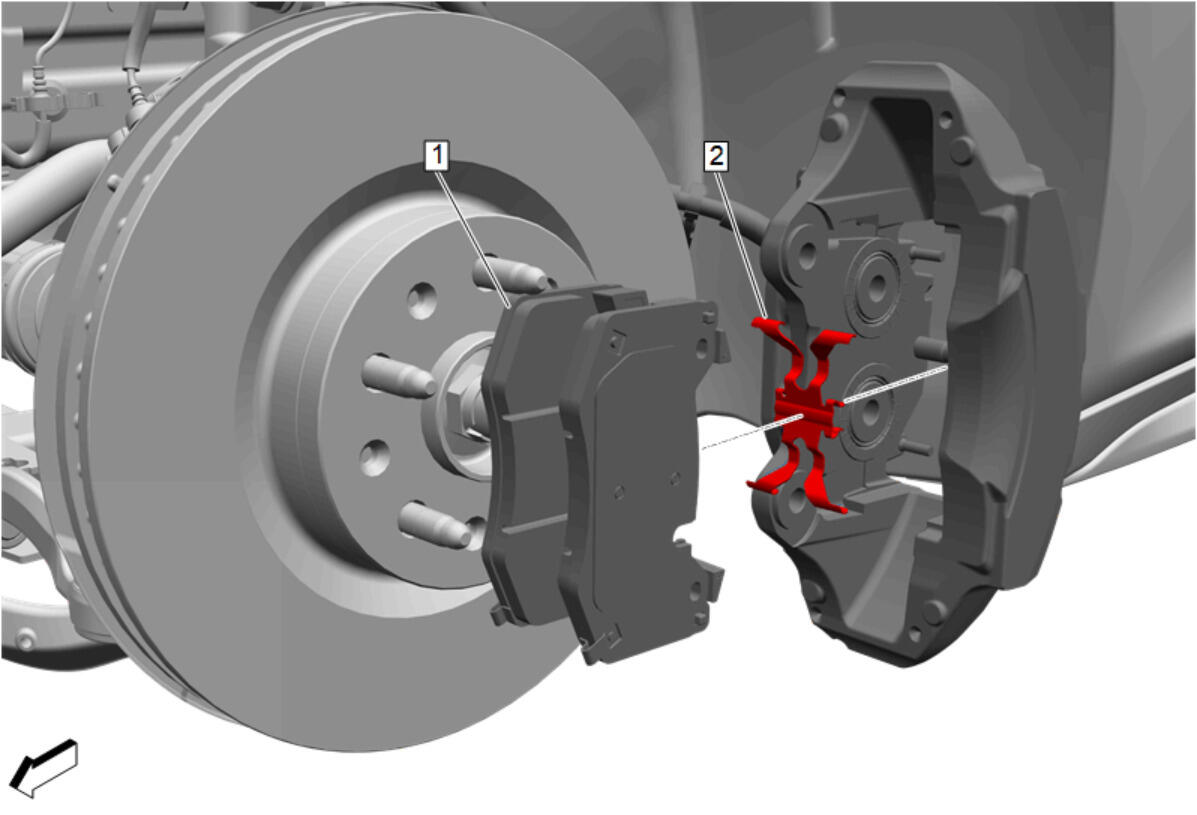

  3. GM5335019Courtesy of GENERAL MOTORS COMPANY

    Front Disc Brake Pad Retaining Spring (1) - Install

  4. Front Disc Brake Pad (1) - Install [2x]

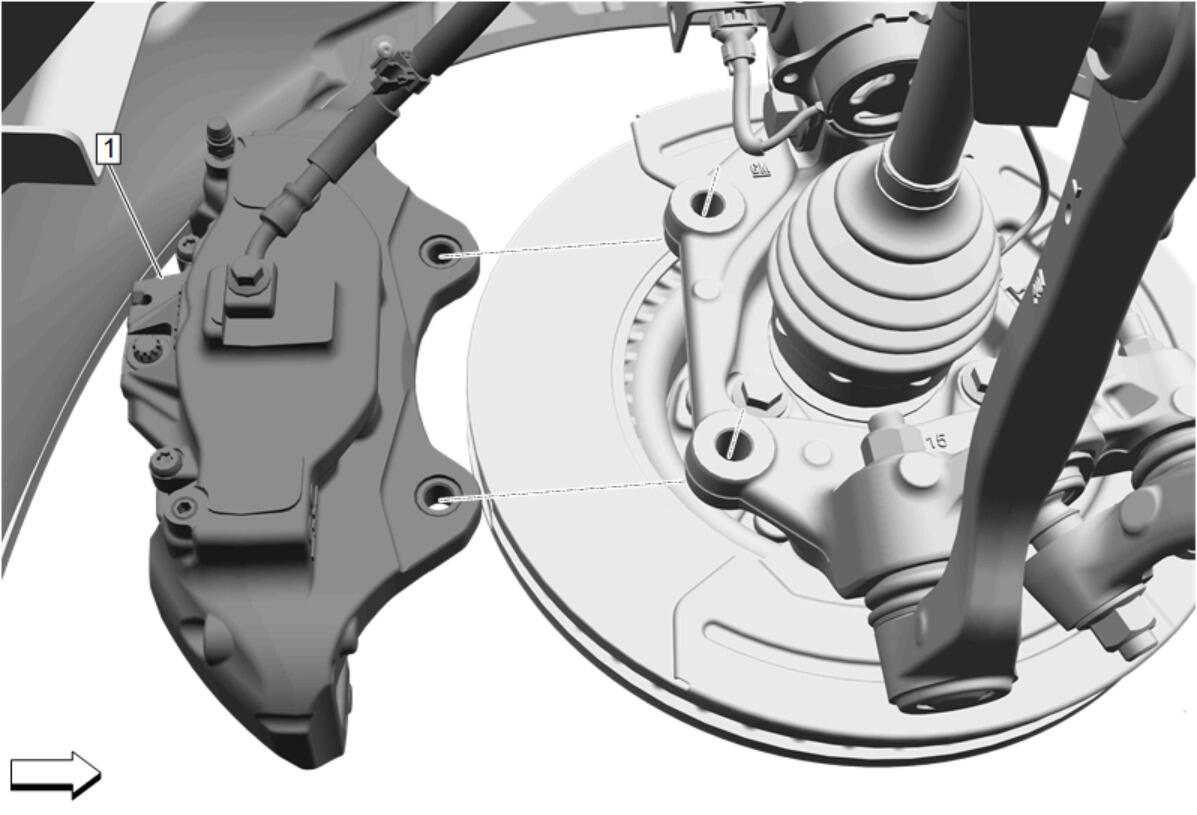

  5. GM5335020Courtesy of GENERAL MOTORS COMPANY

    Front Brake Caliper (1) - Install

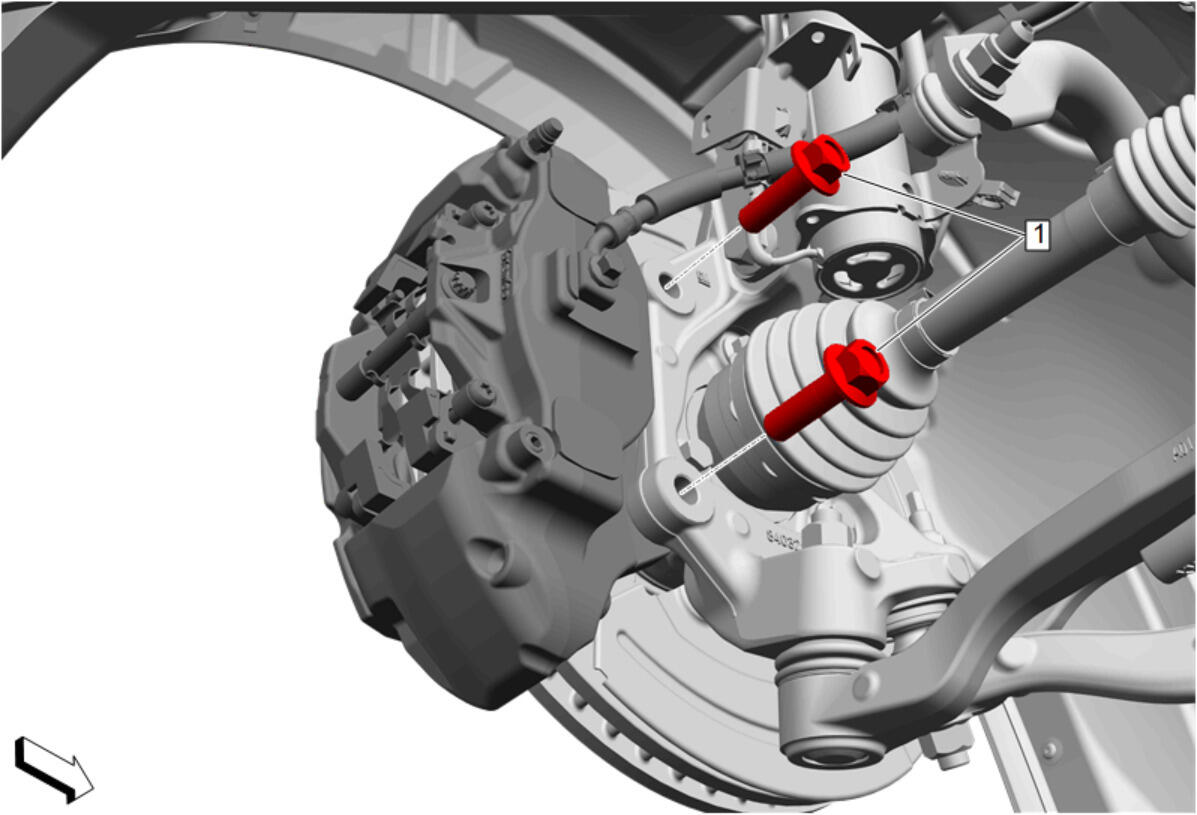

  6. GM5335022Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    7. CAUTION:

    Fastener Caution

  7. Front Brake Caliper Bracket Bolt (1) - Install and tighten [2x] - Front Brake Caliper Replacement (J56)
  8. GM5324663Courtesy of GENERAL MOTORS COMPANY

    {If equipped}Front Disc Brake Pad Wear Sensor (1) - Install - Front Disc Brake Pad Wear Sensor Replacement (J57, J6H)

  9. Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation (without J57)
  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  11. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  12. Slowly release the brake pedal.
  13. Wait 15 seconds, then repeat steps 11 - 12 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
  14. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
  15. Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing
