Transmission Extension Assembly
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

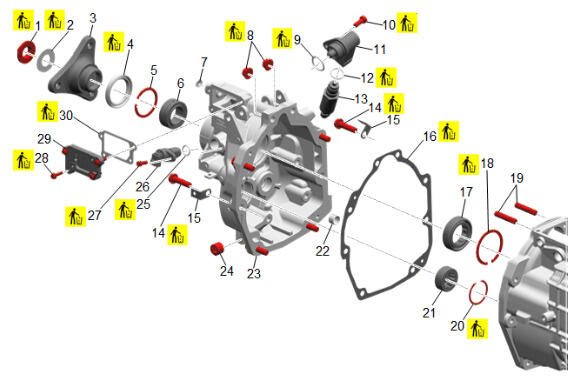

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Propeller Shaft Transmission Yoke Nut |
| 2 | Propeller Shaft Transmission Yoke Washer |
| 3 | Propeller Shaft Transmission Yoke |
| 4 | Main Shaft Rear Seal |
| 5 | Main Shaft Rear Bearing Retaining Ring |
| 6 | Main Shaft Rear Bearing |
| 7 | Shift Control Shaft Seal |
| 8 | Transmission Extension Nut [2x] |
| 9 | Manual Transmission Reverse Gear Blockout Solenoid Housing Seal- Large |
| 10 | Manual Transmission Reverse Gear Blockout Solenoid Housing Bolt |
| 11 | Manual Transmission Reverse Gear Blockout Solenoid Housing |
| 12 | Manual Transmission Reverse Gear Blockout Solenoid Housing Seal- Small |
| 13 | Manual Transmission Reverse Gear Blockout Solenoid |
| 14 | Transmission Extension Bolt [6x] |
| 15 | Transmission Fluid Cooler Upper Extension Pipe Clip Bracket [2x] |
| 16 | Transmission Extension Gasket |
| 17 | Main Shaft Rear Bearing |
| 18 | Main Shaft Rear Bearing Retaining Ring |
| 19 | Transmission Extension Stud [2x] |
| 20 | Counter Gear Rear Bearing Retaining Ring |
| 21 | Counter Gear Rear Bearing |
| 22 | Transmission Extension Bushing |
| 23 | Transmission Extension |
| 24 | Transmission Oil Drain Plug |
| 25 | Vehicle Speed Sensor Seal |
| 26 | Manual Transmission Output Speed Sensor |
| 27 | Manual Transmission Output Speed Sensor Bolt |
| 28 | Manual Transmission Gear Position Sensor Bolt [4x] |
| 29 | Manual Transmission Gear Position Sensor |
| 30 | Manual Transmission Gear Position Sensor Seal |
