Transmission Case 3 of 3
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

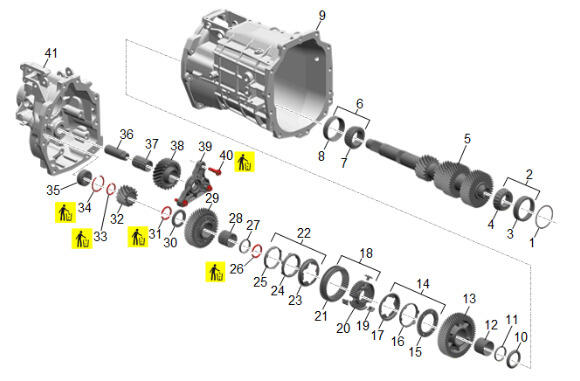

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Counter Gear Bearing Shim |
| 2 | Counter Gear Front Bearing |
| 3 | Counter Gear Front Bearing Race |
| 4 | Counter Gear Front Bearing |
| 5 | Counter Gear |
| 6 | Counter Gear Center Bearing |
| 7 | Counter Gear Center Bearing |
| 8 | Counter Gear Bearing Cup |
| 9 | Transmission Case |
| 10 | 6th Gear Thrust Washer |
| 11 | 6th Counter Gear Spacer |
| 12 | 6th Gear Bearing |
| 13 | 6th Gear |
| 14 | 6th Gear Blocking Ring |
| 15 | 6th Gear Synchronizer Inner Cone |
| 16 | 6th Gear Synchronizer Outer Cone |
| 17 | 6th Gear Blocking Ring |
| 18 | 5th and 6th Gear Synchronizer |
| 19 | 5th and 6th Gear Synchronizer Insert [3x] |
| 20 | 5th and 6th Gear Synchronizer Hub |
| 21 | 5th and 6th Gear Synchronizer Sleeve |
| 22 | 5th Gear Blocking Ring |
| 23 | 5th Gear Synchronizer Inner Cone |
| 24 | 5th Gear Synchronizer Outer Cone |
| 25 | 5th Gear Blocking Ring |
| 26 | 5th and 6th Gear Synchronizer Hub Retaining Ring |
| 27 | 5th Gear Bearing Spacer |
| 28 | 5th Gear Bearing |
| 29 | 5th Gear |
| 30 | 5th Gear Thrust Washer |
| 31 | 5th Gear Retaining Ring |
| 32 | Reverse Counter Gear |
| 33 | Counter Drive Gear Retaining Ring |
| 34 | Counter Gear Rear Bearing Retaining Ring |
| 35 | Counter Gear Rear Bearing |
| 36 | Reverse Idler Gear Shaft |
| 37 | Reverse Idler Gear Bearing |
| 38 | Reverse Idler Gear |
| 39 | Reverse Idler Gear Shaft Bracket |
| 40 | Reverse Idler Gear Shaft Bracket Bolt [3x] |
| 41 | Transmission Extension |
