Transmission Case 2 of 3
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

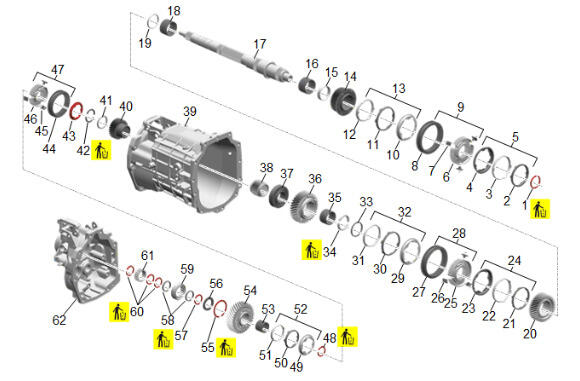

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | 3rd and 4th Gear Synchronizer Retaining Ring |
| 2 | 3rd and 4th Gear Synchronizer Inner Cone |
| 3 | 3rd and 4th Gear Synchronizer Outer Cone |
| 4 | 3rd and 4th Gear Blocking Ring |
| 5 | 3rd and 4th Gear Blocking Ring |
| 6 | 3rd and 4th Gear Synchronizer Hub |
| 7 | 3rd and 4th Gear Synchronizer Insert [3x] |
| 8 | 3rd and 4th Gear Synchronizer Sleeve |
| 9 | 3rd and 4th Gear Blocking Ring |
| 10 | 3rd and 4th Gear Synchronizer Inner Cone |
| 11 | 3rd and 4th Gear Synchronizer Outer Cone |
| 12 | 3rd and 4th Gear Blocking Ring |
| 13 | 3rd and 4th Gear Blocking Ring |
| 14 | 3rd Gear |
| 15 | 3rd Gear Bearing Spacer |
| 16 | 3rd Gear Bearing |
| 17 | Main Shaft |
| 18 | 2nd Gear Bearing |
| 19 | 2nd Gear Bearing Spacer |
| 20 | 2nd Gear |
| 21 | 2nd Gear Synchronizer Inner Cone |
| 22 | 2nd Gear Synchronizer Outer Cone |
| 23 | 2nd Gear Blocking Ring |
| 24 | 2nd Gear Blocking Ring |
| 25 | 1st and 2nd Gear Synchronizer Hub |
| 26 | 1st and 2nd Gear Synchronizer Insert [3x] |
| 27 | 1st and 2nd Gear Synchronizer Sleeve |
| 28 | 1st and 2nd Gear Synchronizer |
| 29 | 1st Gear Blocking Ring |
| 30 | 1st Gear Synchronizer Outer Cone |
| 31 | 1st Gear Synchronizer Inner Cone |
| 32 | 1st Gear Blocking Ring |
| 33 | 1st Gear Thrust Washer |
| 34 | 1st and 2nd Gear Synchronizer Retaining Ring |
| 35 | 1st Gear Bearing |
| 36 | 1st Gear |
| 37 | Main Shaft Rear Bearing |
| 38 | 6th Gear |
| 39 | Transmission Case |
| 40 | 5th Gear |
| 41 | 5th Gear Thrust Washer |
| 42 | Reverse Gear Retaining Ring |
| 43 | Reverse Gear Synchronizer Insert Retainer |
| 44 | Reverse Gear Synchronizer Sleeve |
| 45 | Reverse Gear Synchronizer Insert [3x] |
| 46 | Reverse Gear Synchronizer Hub |
| 47 | Reverse Gear Synchronizer |
| 48 | Reverse Gear Synchronizer Retainer |
| 49 | Reverse Gear Blocking Ring |
| 50 | Reverse Gear Synchronizer Outer Cone |
| 51 | Reverse Gear Synchronizer Inner Cone |
| 52 | Reverse Gear Blocking Ring |
| 53 | Reverse Gear Bearing |
| 54 | Reverse Gear |
| 55 | Reverse Gear Retaining Ring |
| 56 | Reverse Gear Thrust Washer |
| 57 | Reverse Gear Retaining Ring |
| 58 | Reverse Gear Thrust Washer [2x] |
| 59 | Main Shaft Rear Bearing |
| 60 | Main Shaft Bearing Retaining Ring [3x] |
| 61 | Vehicle Speed Sensor Reluctor Wheel |
| 62 | Transmission Extension |
