Extension Housing and Components
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

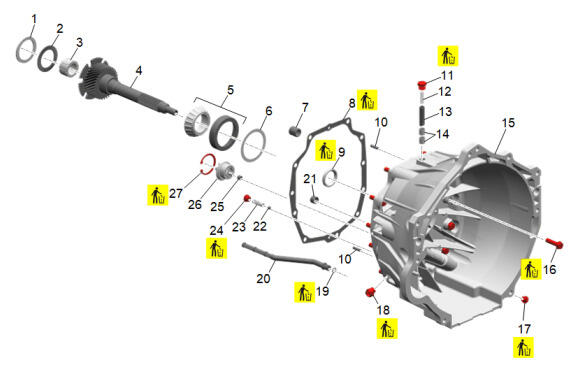

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Main Shaft Rear Bearing Thrust Washer |
| 2 | Main Shaft Front Bearing |
| 3 | Main Shaft Bearing |
| 4 | Input Shaft |
| 5 | Input Shaft Bearing |
| 6 | Input Shaft Bearing Shim |
| 7 | Shift Shaft Bushing |
| 8 | Clutch Housing Gasket |
| 9 | Input Shaft Seal |
| 10 | Transmission Case Locating Pin [2x] |
| 11 | Shift Shaft Detent Plug |
| 12 | Shift Shaft Detent Spring |
| 13 | Shift Shaft Detent Roller |
| 14 | Shift Shaft Detent Bushing [2x] |
| 15 | Clutch Housing |
| 16 | Clutch Housing Adapter Bolt [11x] |
| 17 | Transmission Case Plug |
| 18 | Transmission Fluid Pump Outlet Pipe Fitting |
| 19 | Transmission Fluid Pump Inlet Pipe Seal |
| 20 | Transmission Fluid Pump Inlet Pipe |
| 21 | 3rd and 4th Shift Shaft Bushing |
| 22 | Transmission Fluid Pump Check Ball |
| 23 | Transmission Fluid Pump Check Ball Spring |
| 24 | Transmission Adapter Plug |
| 25 | Automatic Transmission Fluid Pump Rotor Bushing |
| 26 | Transmission Fluid Pump |
| 27 | Transmission Fluid Pump Retaining Ring |
