Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

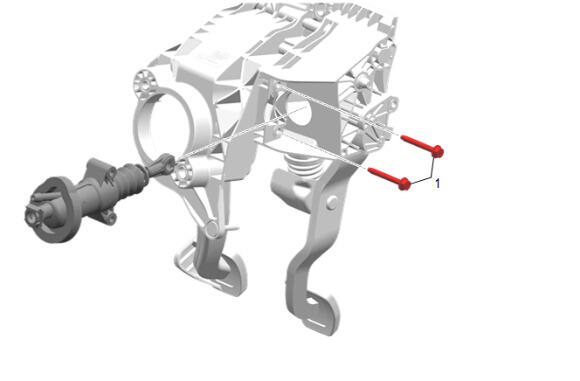

Clutch Master Cylinder Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Clutch Master Cylinder Bolt [2x] | - | - | 25 N.m (18 lb ft) | Clutch Master Cylinder Replacement |

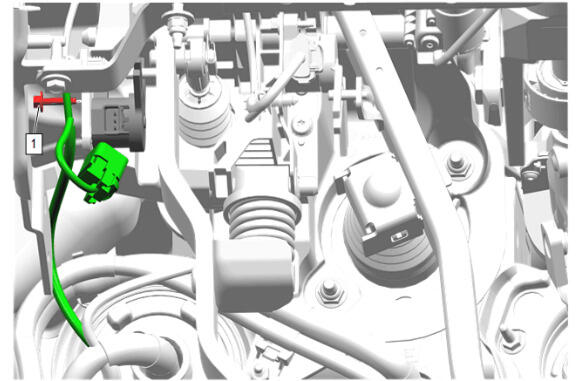

Clutch Pedal Position Sensor Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Clutch Pedal Position Sensor Bolt | - | - | 2.5 N.m (22 lb in) | Clutch Pedal Position Sensor Replacement |
Clutch Pressure Plate Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Clutch Pressure Plate Bolt [6x] | Yes | - | Clutch Pressure Plate Bolt Sequence | Clutch Assembly Replacement |

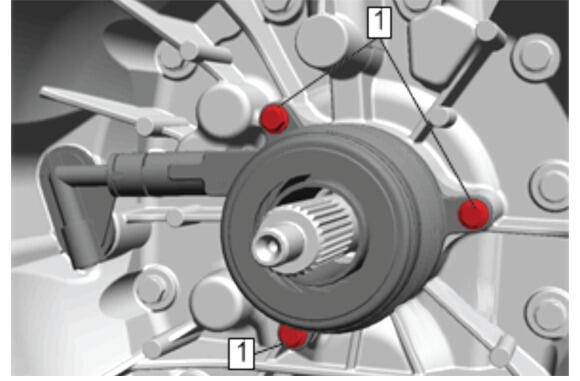

Clutch Actuator Cylinder Bolt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Clutch Actuator Cylinder Bolt [3x] | - | - | 9 N.m (80 lb in) | Clutch Actuator Cylinder Replacement |

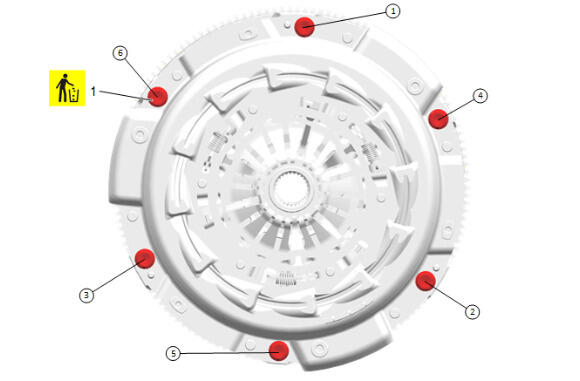

| Clutch Pressure Plate Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Clutch Pressure Plate Bolt [6x] | Yes | - | First Pass: 15 N.m (11 lb ft) Second Pass: 35 N.m (26 lb ft) Final Pass: 70 N.m (52 lb ft) |
Clutch Assembly Replacement |
