Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Auxiliary Cooler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

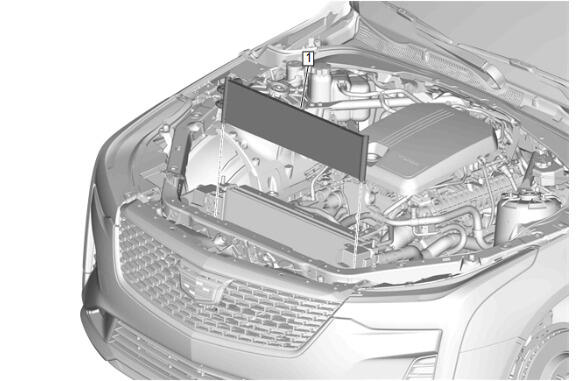

Install the air conditioning condenser (1) back into the engine compartment by tilting the left and right side radiator air side baffles outwards, maneuvering the condenser past the baffles.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Air Conditioning Condenser Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (2) - Install [2x]
Air Conditioning Condenser Tube Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Hose Seal (2) - Install NEW
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Tube Clip (2) - Install
Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Left Side (2) - Install
Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Right Side (3) - Install
Radiator Upper Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (2) - Install
Radiator Air Upper Deflector Retainer (1) - Install [7x]
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

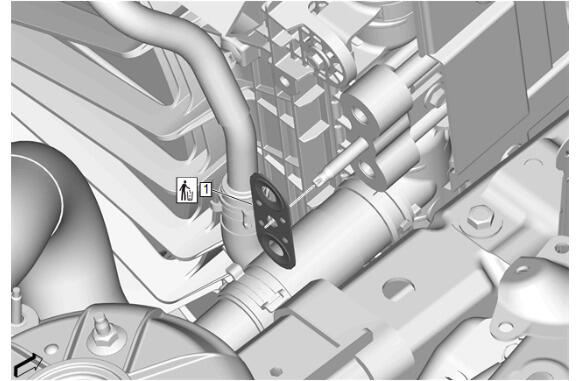

Transmission Fluid Cooler Seal (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission Fluid Auxiliary Cooler - Install
Transmission Fluid Cooler Pipe Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
Recharge the refrigerant. Refrigerant Recovery and Recharging
Check the transmission fluid level. Transmission Fluid Level and Condition Check
Inspect for transmission fluid leaks. Fluid Leak Diagnosis
