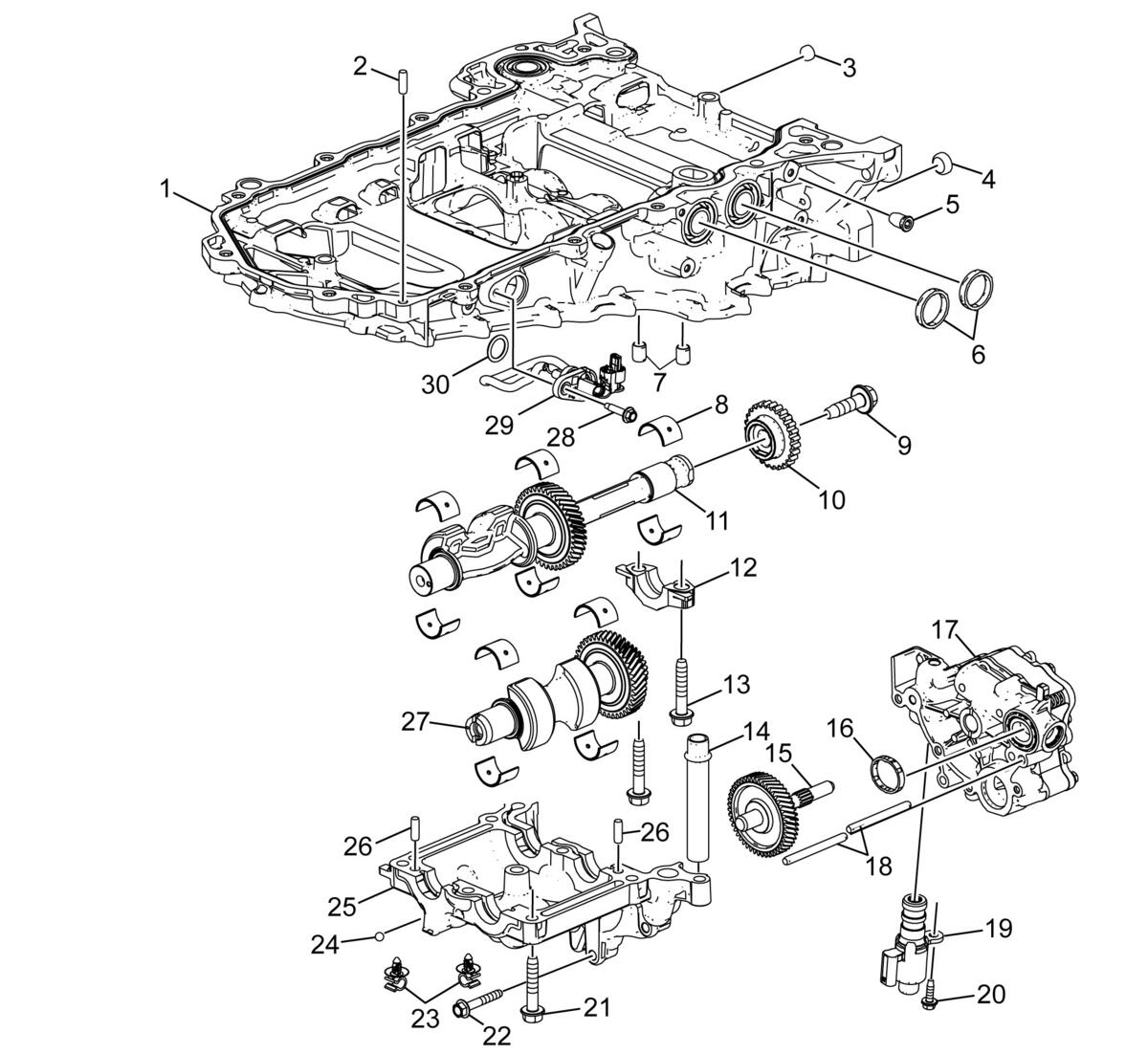

Lower Crankcase Extension and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Lower Crankcase Extension |
| 2 | Lower Crankcase Extension Pin [2x] |
| 3 | Lower Crankcase Extension Oil Gallery Plug |
| 4 | Lower Crankcase Extension Core Hole Plug |
| 5 | Lower Crankcase Extension Oil Gallery Plug |
| 6 | Engine Oil Cooler Seal [2x] |
| 7 | Balancer Shaft Housing Locating Pin [2x] |
| 8 | Balancer Shaft Bearing [10x] |
| 9 | Balance Shaft Sprocket Bolt |
| 10 | Balancer Shaft Driven Sprocket |
| 11 | Balancer Drive Shaft |
| 12 | Balancer Shaft Bearing Cap |
| 13 | Balancer Shaft Housing Bolt [2x] |
| 14 | Positive Crankcase Ventilation Tube |
| 15 | Oil Pump Drive Shaft |
| 16 | Oil Pump Gasket |
| 17 | Oil Pump |
| 18 | Oil Pump Locating Pin [2x] |
| 19 | Oil Pump Flow Control Solenoid Valve |
| 20 | Oil Pump Flow Control Solenoid Valve Bolt |
| 21 | Balancer Shaft Housing Bolt [7x] |
| 22 | Oil Pump Bolt [4x] |
| 23 | Oil Pump Flow Control Solenoid Valve Wire Clip [2x] |
| 24 | Balancer Shaft Hole Plug |
| 25 | Balancer Shaft Lower Housing |
| 26 | Lower Crankcase Extension Pin [2x] |
| 27 | Balancer Driven Shaft |
| 28 | Oil Pump Flow Control Solenoid Valve Bolt |
| 29 | Oil Pump Flow Control Solenoid Valve Wire |
| 30 | Oil Pump Flow Control Solenoid Valve Seal |
