Fuel Pump and Components
WARNING: This page is about a different variant/trim than selected.

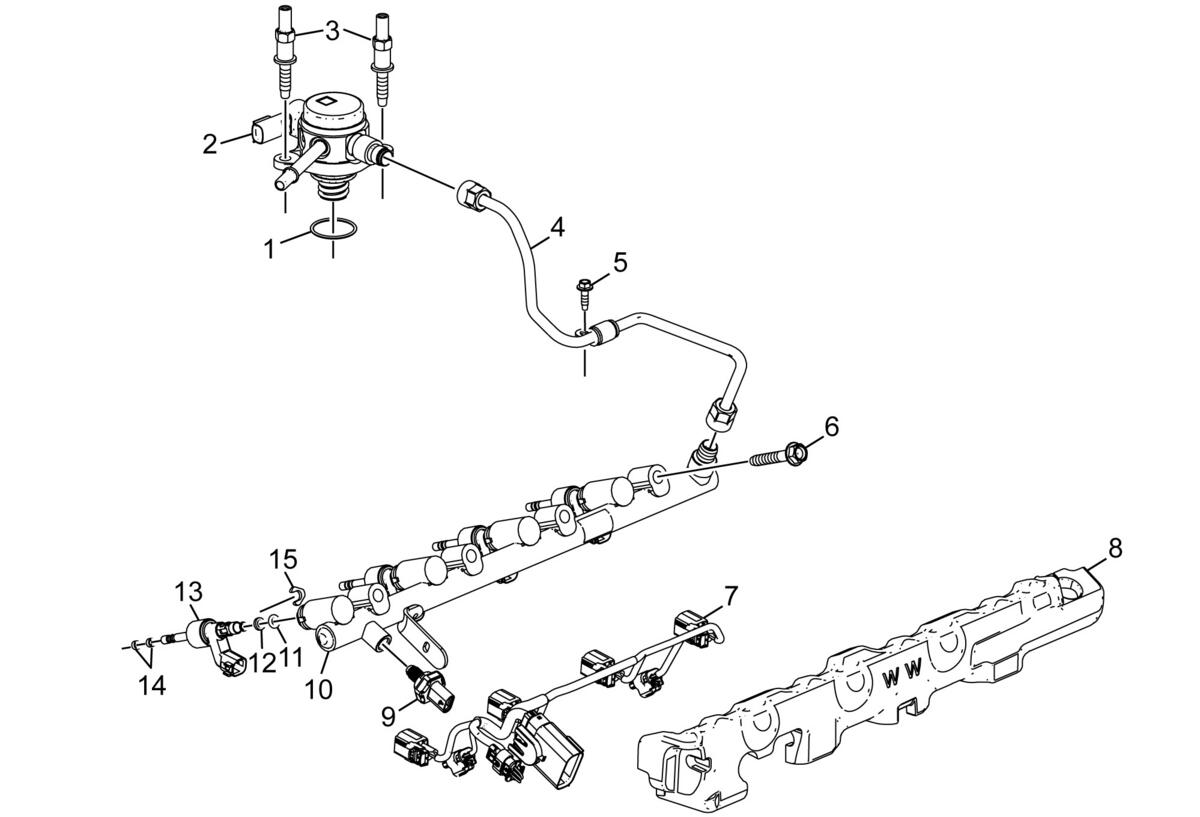

| Callout | Component Name |
|---|---|
| 1 | Fuel Pump Housing Seal |
| 2 | Fuel Pump |
| 3 | Fuel Pump Stud [2x] |
| 4 | Fuel Feed Intermediate Pipe |
| 5 | Fuel Injection Fuel Feed Pipe Bracket Bolt |
| 6 | Fuel Injection Fuel Rail Bolt [4x] |
| 7 | Fuel Injector Wiring Harness |
| 8 | Fuel Injection Fuel Rail Noise Shield |
| 9 | Fuel Injection Fuel Rail Fuel Pressure Sensor |
| 10 | Fuel Injection Fuel Rail |
| 11 | Fuel Injector Seal [4x] |
| 12 | Fuel Injector Seal Spacer [4x] |
| 13 | Direct Fuel Injector [4x] |
| 14 | Fuel Injector Nozzle Housing Seal [8x] |
| 15 | Fuel Injector Bushing [4x] |
