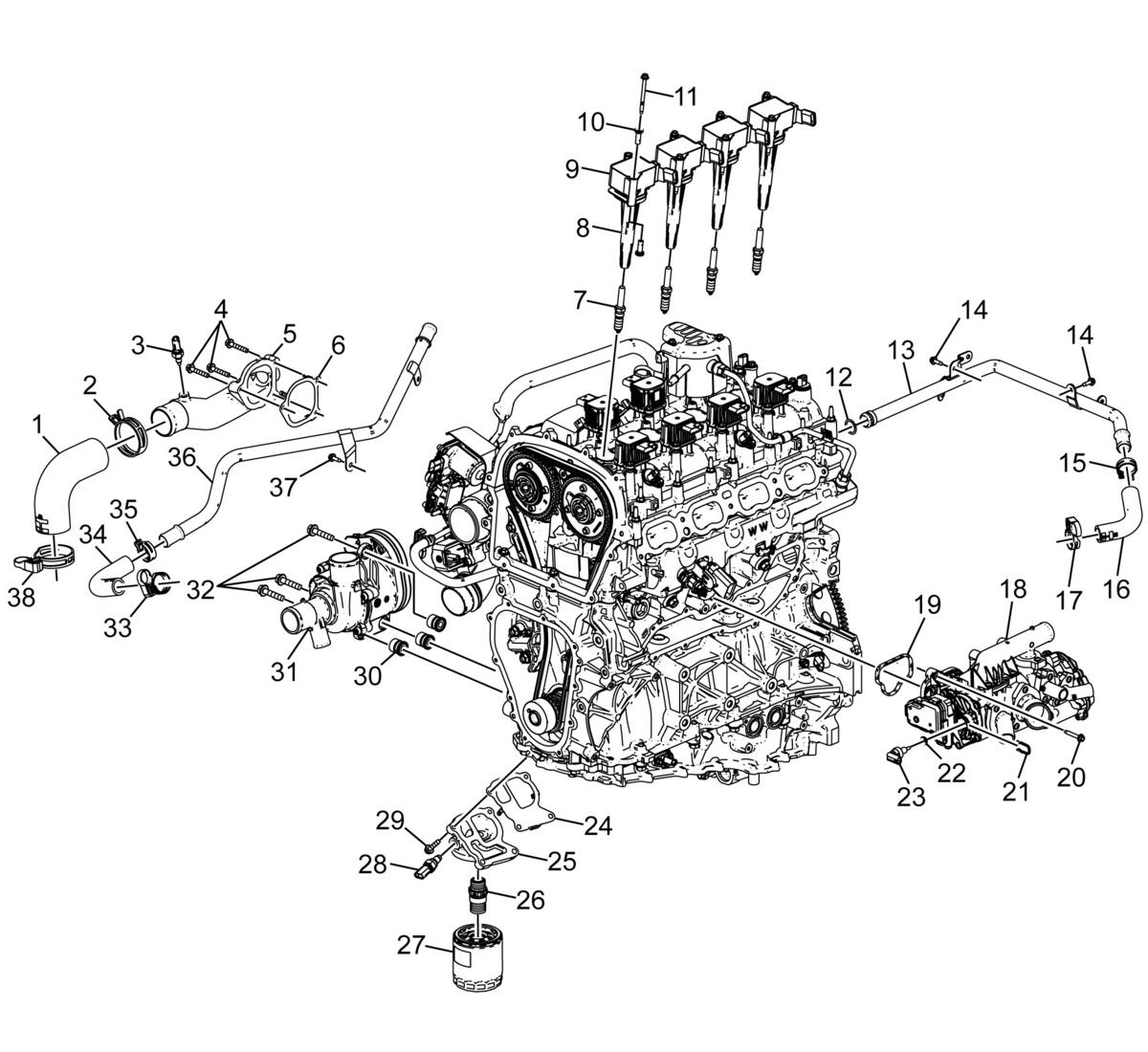

Engine Cooling and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Thermostat Bypass Hose |
| 2 | Thermostat Bypass Hose Clamp |
| 3 | Engine Coolant Temperature Sensor |
| 4 | Water Outlet Bolt [3x] |
| 5 | Water Inlet |
| 6 | Water Pump Inlet Gasket |
| 7 | Spark Plug [4x] |
| 8 | Spark Plug Boot |
| 9 | Ignition Coil Insulator |
| 10 | Ignition Coil [4x] |
| 11 | Ignition Coil Bolt [8x] |
| 12 | Water Pump Outlet Port Seal |
| 13 | Engine Coolant Thermostat Housing Inlet Pipe |
| 14 | Heater Outlet Pipe Bolt [2x] |
| 15 | Heater Outlet Hose Clamp |
| 16 | Heater Outlet Hose |
| 17 | Heater Outlet Hose Clamp |
| 18 | Engine Coolant Flow Control Valve [4x] |
| 19 | Engine Coolant Flow Control Valve Seal |
| 20 | Engine Coolant Flow Control Valve Bolt [4x] |
| 21 | Engine Coolant Temperature Sensor Retainer |
| 22 | Engine Coolant Temperature Sensor Seal |
| 23 | Engine Coolant Temperature Sensor |
| 24 | Oil Filter Adapter Gasket |
| 25 | Oil Filter Adapter |
| 26 | Oil Filter Bypass Valve |
| 27 | Oil Filter |
| 28 | Engine Oil Temperature Sensor |
| 29 | Oil Filter Adapter Bolt [4x] |
| 30 | Water Pump Bushings [3x] |
| 31 | Water Pump |
| 32 | Water Pump Bolt [3x] |
| 33 | Thermostat Bypass Hose Clamp |
| 34 | Heater Outlet Pipe |
| 35 | Thermostat Bypass Hose Clamp |
| 36 | Thermostat Bypass Hose |
| 37 | Heater Outlet Pipe Bolt |
| 38 | Thermostat Bypass Hose Clamp |
