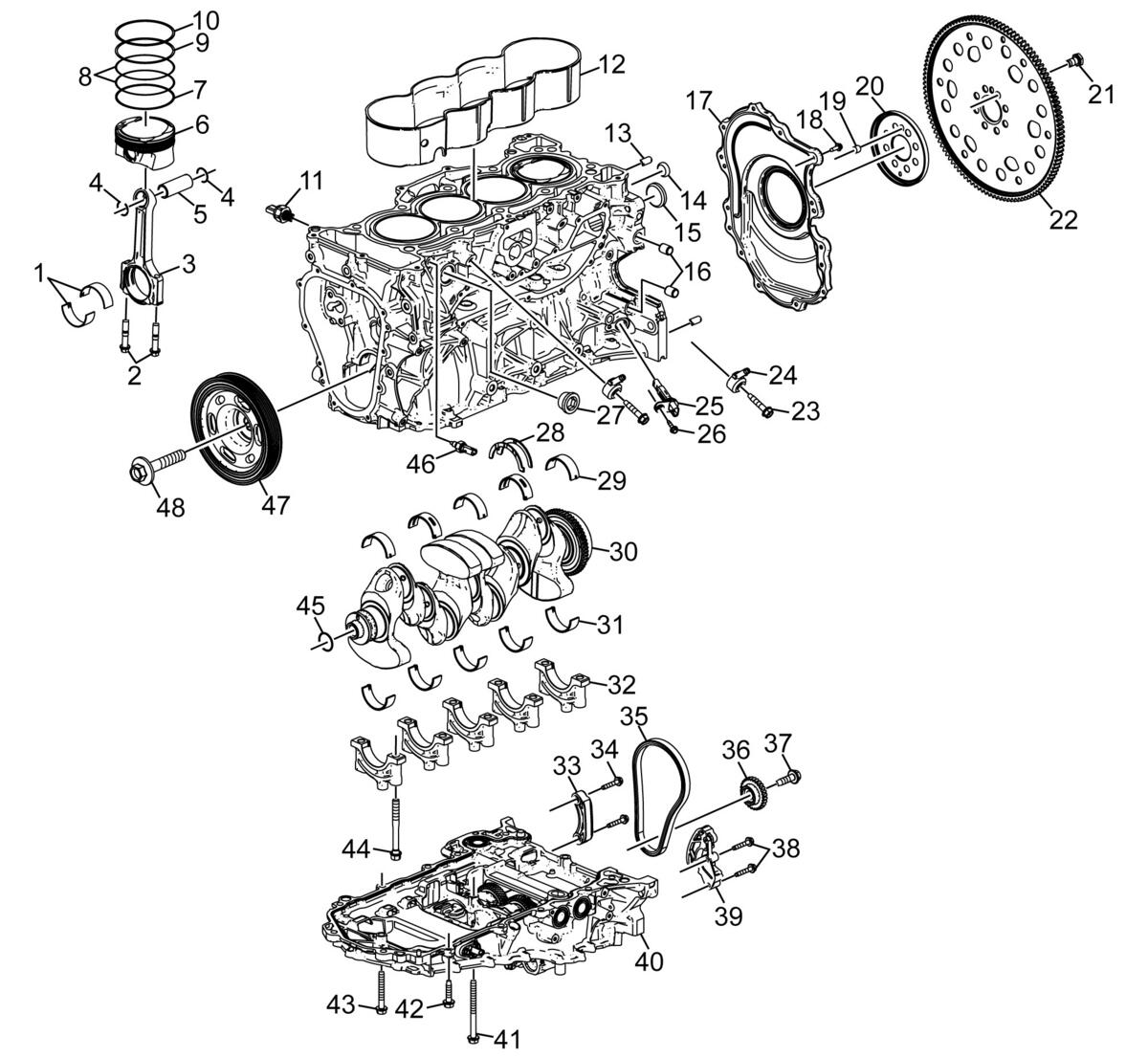

Engine Block and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Connecting Rod Bearing [8x] |
| 2 | Connecting Rod Bolt [8x] |
| 3 | Connecting Rod [4x] |
| 4 | Piston Pin Retainer [8x] |
| 5 | Piston Pin [4x] |
| 6 | Piston [4x] |
| 7 | Piston Oil Ring Rail Spacer [4x] |
| 8 | Piston Oil Ring Rail [8x] |
| 9 | Piston Compression Lower Ring [4x] |
| 10 | Piston Compression Upper Ring [4x] |
| 11 | Engine Oil Pressure Sensor |
| 12 | Engine Block Coolant Baffle |
| 13 | Transmission Locating Pin [2x] |
| 14 | Engine Block Oil Gallery Plug |
| 15 | Engine Block Oil Gallery Plug |
| 16 | Starter Locating Pin [2x] |
| 17 | Crankshaft Rear Oil Seal Housing |
| 18 | Crankshaft Rear Oil Seal Housing Bolt [14x] |
| 19 | Flywheel Locating Pin |
| 20 | Crankshaft Position Sensor Reluctor Ring |
| 21 | Automatic Transmission Flex Plate Bolt [8x] |
| 22 | Automatic Transmission Flex Plate |
| 23 | Knock Sensor Bolt [2x] |
| 24 | Knock Sensor [2x] |
| 25 | Crankshaft Position Sensor |
| 26 | Crankshaft Position Sensor Bolt |
| 27 | Engine Block Coolant Hole Plug |
| 28 | Crankshaft Thrust Bearing [2x] |
| 29 | Crankshaft Upper Bearing [5x] |
| 30 | Crankshaft |
| 31 | Crankshaft Lower Bearing [5x] |
| 32 | Crankshaft Bearing Cap [5x] |
| 33 | Balancer Chain Adjust Guide |
| 34 | Balance Chain Guide Bolt [2x] |
| 35 | Balance Chain |
| 36 | Balancer Shaft Driven Sprocket |
| 37 | Balance Shaft Sprocket Bolt |
| 38 | Balancer Chain Tensioner Bolt [2x] |
| 39 | Balancer Chain Tensioner |
| 40 | Engine Block Lower Structural Extension |
| 41 | Engine Block Lower Structural Extension Bolt |
| 42 | Engine Block Lower Structural Extension Bolt [10x] |
| 43 | Engine Block Lower Structural Extension Bolt [4x] |
| 44 | Crankshaft Bearing Cap Bolt [10x] |
| 45 | Crankshaft Front Seal |
| 46 | Engine Coolant Temperature Sensor |
| 47 | Crankshaft Balancer |
| 48 | Crankshaft Balancer Bolt |
