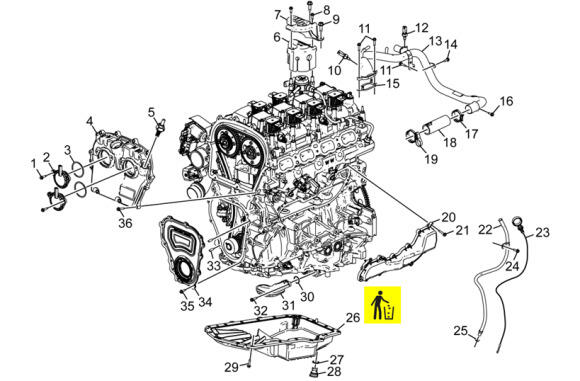

Covers and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve Bolt [4x] |
| 2 | Camshaft Position Actuator Magnet [2x] |
| 3 | Camshaft Position Actuator Magnet Gasket [2x] |
| 4 | Timing Chain Upper Cover |
| 5 | Positive Crankcase Ventilation Valve |
| 6 | Fuel Pump Insulator |
| 7 | Fuel Injection Pump Bracket |
| 8 | Fuel Injection Fuel Feed Pipe Bracket Bolt [2x] |
| 9 | Fuel Pump Shield Bolt [2x] |
| 10 | Engine Coolant Temperature Sensor |
| 11 | Exhaust Manifold Outlet Pipe Bolt |
| 12 | Engine Coolant Temperature Sensor |
| 13 | Exhaust Manifold Outlet Pipe |
| 14 | Exhaust Manifold Outlet Pipe Bolt |
| 15 | Exhaust Manifold Outlet Pipe Gasket |
| 16 | Exhaust Manifold Outlet Pipe Bolt |
| 17 | Thermostat Bypass Hose Clamp |
| 18 | Thermostat Bypass Hose |
| 19 | Thermostat Bypass Hose Clamp |
| 20 | Positive Crankcase Ventilation Baffle |
| 21 | Positive Crankcase Ventilation Baffle Bolt [12x] |
| 22 | Oil Level Indicator Tube |
| 23 | Oil Level Indicator |
| 24 | Oil Level Indicator Tube Bolt |
| 25 | Oil Level Indicator Tube Seal |
| 26 | Oil Pan |
| 27 | Oil Pan Drain Plug Seal |
| 28 | Oil Pan Drain Plug |
| 29 | Lower Oil Pan Bolt [20x] |
| 30 | Oil Pump Suction Pipe Seal |
| 31 | Oil Pump Suction Pipe |
| 32 | Oil Pump Suction Pipe Bolt |
| 33 | Engine Front Cover Locating Pin [2x] |
