Turbocharger and Components
WARNING: This page is about a different variant/trim than selected.

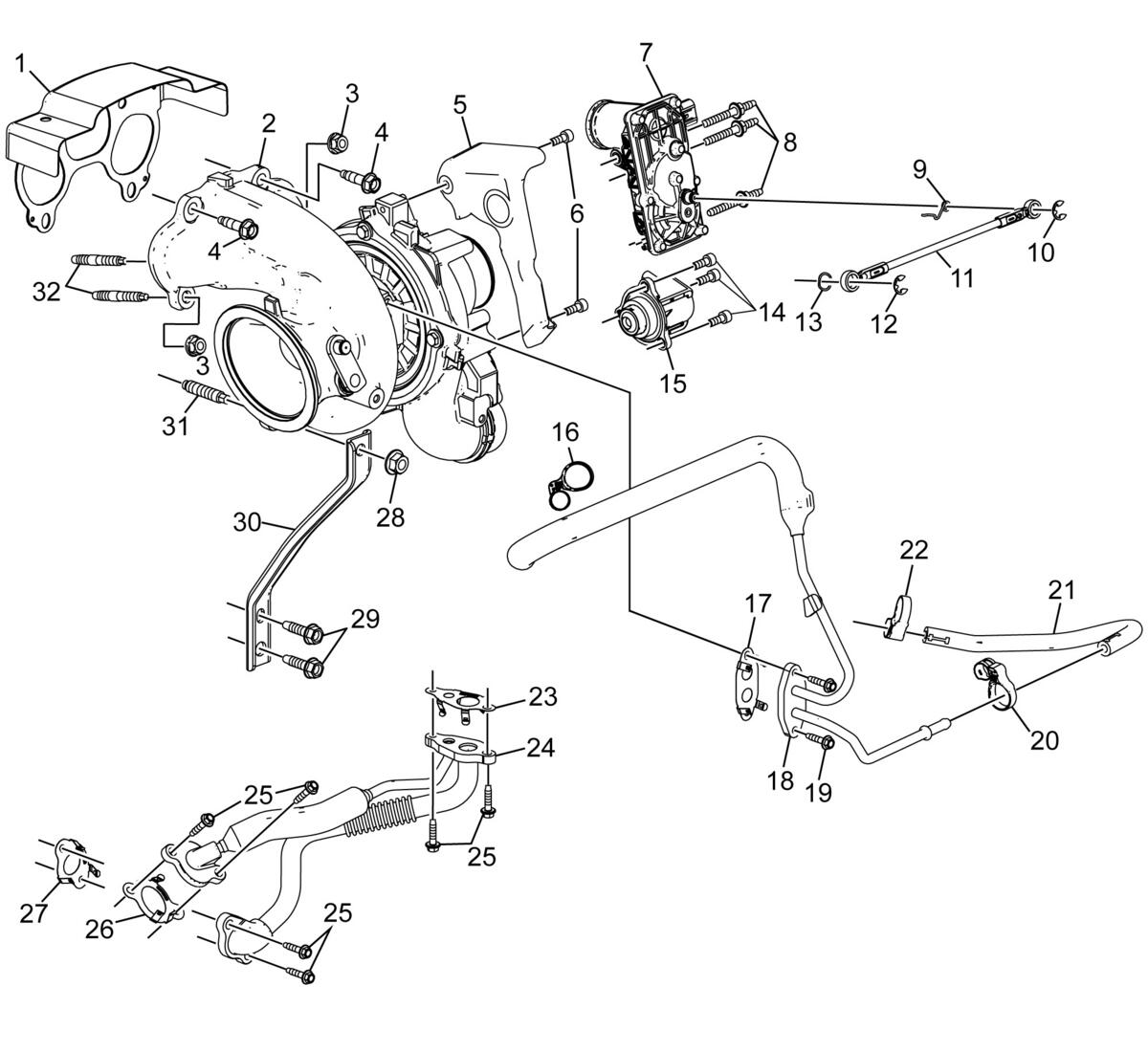

| Callout | Component Name |
|---|---|
| 1 | Turbocharger Gasket |
| 2 | Engine Turbocharger |
| 3 | Turbocharger Nut [2x] |
| 4 | Turbocharger Bolt [2x] |
| 5 | Turbocharger Wastegate Actuator Heat Shield |
| 6 | Turbocharger Wastegate Actuator Heat Shield Bolt [2x] |
| 7 | Turbocharger Wastegate Actuator |
| 8 | Turbocharger Wastegate Actuator Bolt [3x] |
| 9 | Compressor Air Intake Turbocharger Wastegate Valve Link Spring |
| 10 | Compressor Air Intake Turbocharger Wastegate Valve Link Clip |
| 11 | Compressor Air Intake Turbocharger Wastegate Actuator Rod |
| 12 | Compressor Air Intake Turbocharger Wastegate Actuator Link Clip |
| 13 | Compressor Air Intake Turbocharger Wastegate Actuator Link Spring |
| 14 | Turbocharger Bypass Valve Solenoid Bolt [3x] |
| 15 | Turbocharger Bypass Valve Solenoid |
| 16 | Turbocharger Coolant Feed Hose Clamp |
| 17 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 18 | Turbocharger Coolant Feed and Return Pipe |
| 19 | Turbocharger Coolant Feed and Return Pipe Bolt [2x] |
| 20 | Turbocharger Coolant Feed Hose Clamp |
| 21 | Turbocharger Coolant Feed Hose |
| 22 | Turbocharger Coolant Feed Hose Clamp |
| 23 | Turbocharger Oil Return Pipe Gasket |
| 24 | Turbocharger Oil Feed Pipe |
| 25 | Turbocharger Oil Feed Pipe Bolt [6x] |
| 26 | Turbocharger Oil Feed Pipe Gasket |
| 27 | Turbocharger Oil Return Pipe Gasket |
| 28 | Turbocharger Brace Nut |
| 29 | Turbocharger Brace Bolt [2x] |
| 30 | Turbocharger Brace |
| 31 | Turbocharger Bracket Bracket Stud |
| 32 | Turbocharger Stud [2x] |
