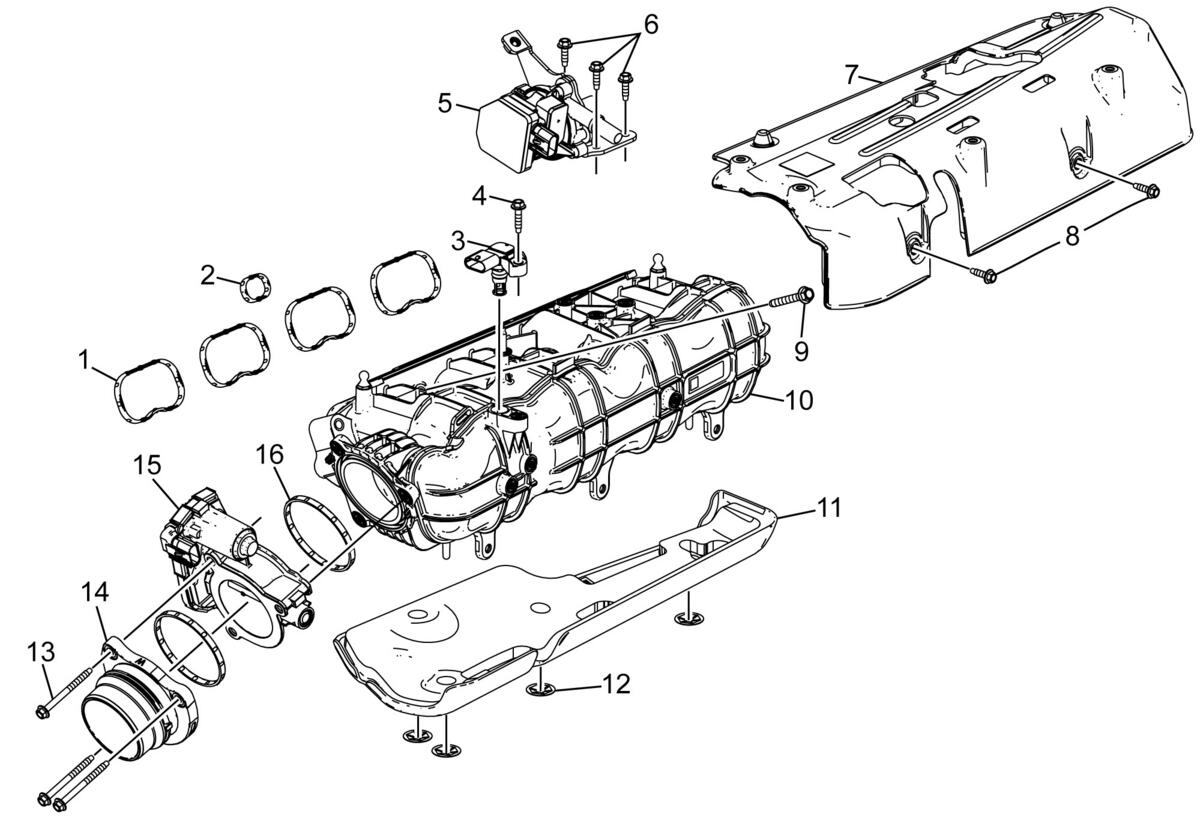

Intake Manifold and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Gasket [4x] |
| 2 | Crankcase Vent Passage Seal |
| 3 | Intake Air Pressure and Temperature Sensor |
| 4 | Intake Air Pressure and Temperature Sensor Bolt |
| 5 | Evaporative Emission Canister Purge Pump |
| 6 | Evaporative Emission Canister Purge Pump Bolt [3x] |
| 7 | Intake Manifold Cover |
| 8 | Intake Manifold Cover Bolt [2x] |
| 9 | Intake Manifold Bolt [6x] |
| 10 | Intake Manifold |
| 11 | Intake Manifold Cover |
| 12 | Intake Manifold Insulator Nut [4x] |
| 13 | Throttle Body Bolt [3x] |
| 14 | Throttle Body Adapter |
| 15 | Throttle Body |
| 16 | Throttle Body Seal [2x] |
