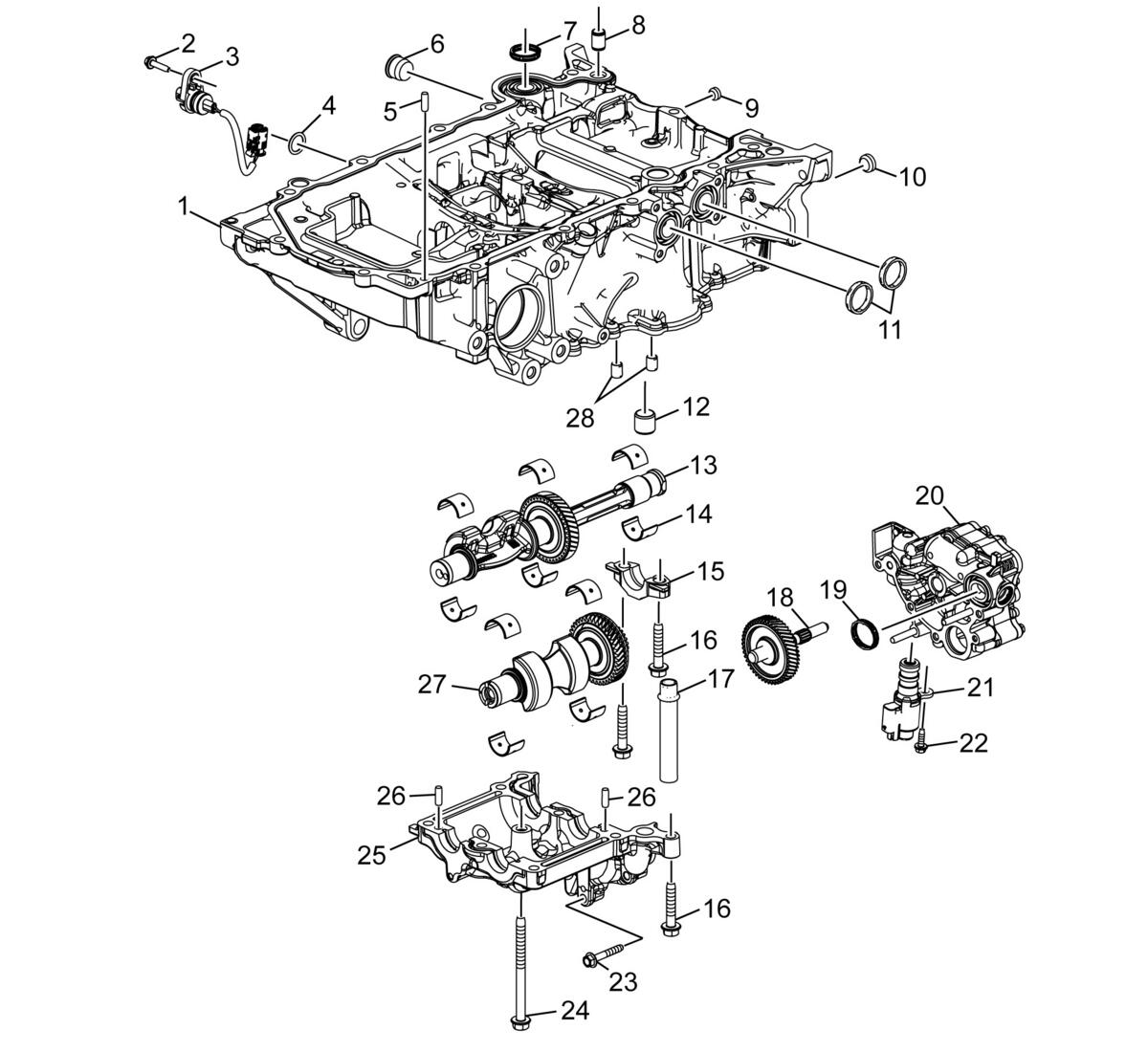

Engine Block Lower Structural Extension and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Engine Block Lower Structural Extension |
| 2 | Oil Pump Flow Control Solenoid Valve Bolt |
| 3 | Oil Pump Flow Control Solenoid Valve Wire |
| 4 | Oil Pump Flow Control Solenoid Valve Seal |
| 5 | Engine Block Lower Structural Extension Pin [2x] |
| 6 | Engine Block Lower Structural Extension Oil Gallery Plug |
| 7 | Oil Pan High Pressure Port Seal |
| 8 | Engine Block Lower Structural Extension Pin |
| 9 | Engine Block Lower Structural Extension Oil Gallery Plug |
| 10 | Engine Block Lower Structural Extension Core Hole Plug |
| 11 | Engine Oil Cooler Seal [2x] |
| 12 | Clutch Housing Pin |
| 13 | Balancer Drive Shaft |
| 14 | Balancer Shaft Bearing [10x] |
| 15 | Balancer Shaft Bearing Cap |
| 16 | Balancer Shaft Housing Bolt [7x] |
| 17 | Positive Crankcase Ventilation Tube |
| 18 | Oil Pump Drive Shaft |
| 19 | Oil Pump Gasket |
| 20 | Oil Pump |
| 21 | Oil Pump Flow Control Solenoid Valve |
| 22 | Oil Pump Flow Control Solenoid Valve Bolt |
| 23 | Oil Pump Bolt [4x] |
| 24 | Oil Pump Bolt |
| 25 | Balancer Shaft Lower Housing |
