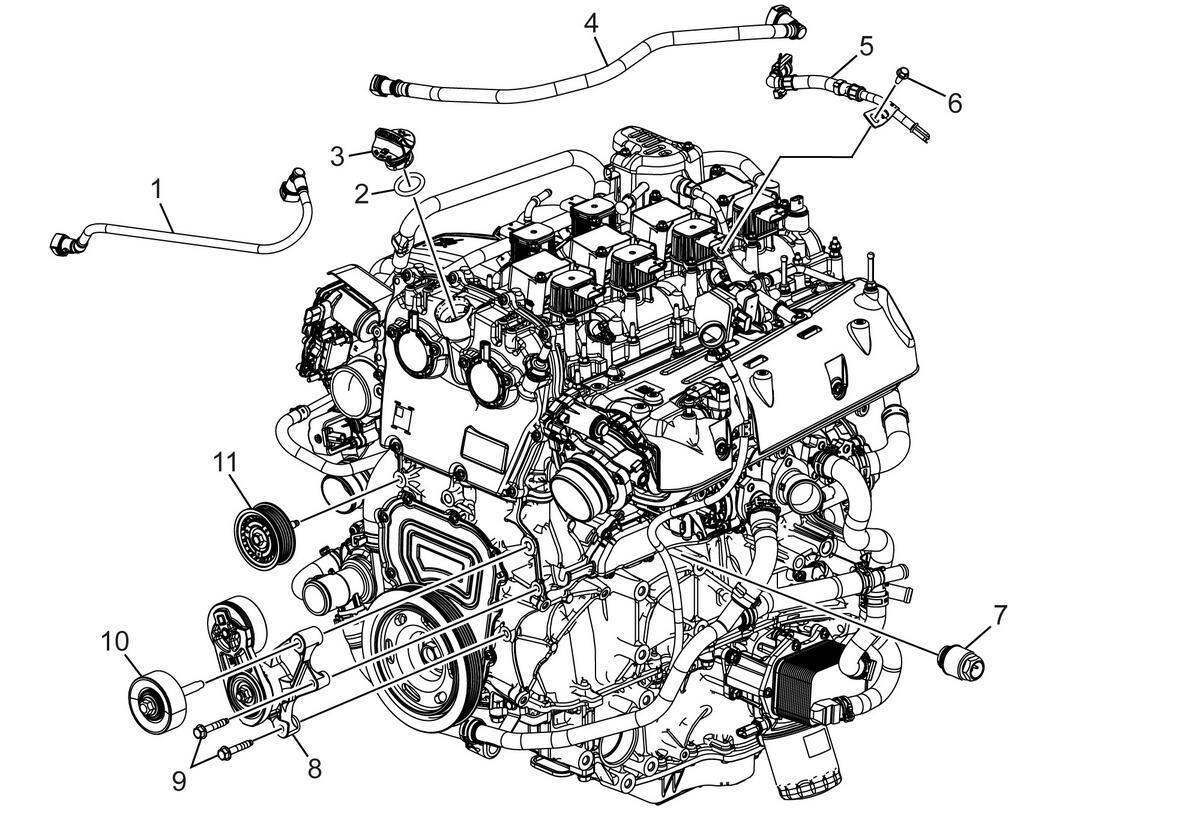

Engine Accessories and Components
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Positive Crankcase Ventilation Tube |
| 2 |
Oil Filler Cap Seal |
| 3 |
Oil Filler Cap |
| 4 |
Positive Crankcase Ventilation Tube |
| 5 |
Fuel Feed Pipe |
| 6 |
Fuel Feed Pipe Bolt |
| 7 |
Engine Coolant Heater |
| 8 |
Drive Belt Tensioner Bolt [2x] |
| 9 |
Idler Belt Pulley |
| 10 |
Drive Belt Tensioner |
| 11 |
Idler Belt Pulley |
