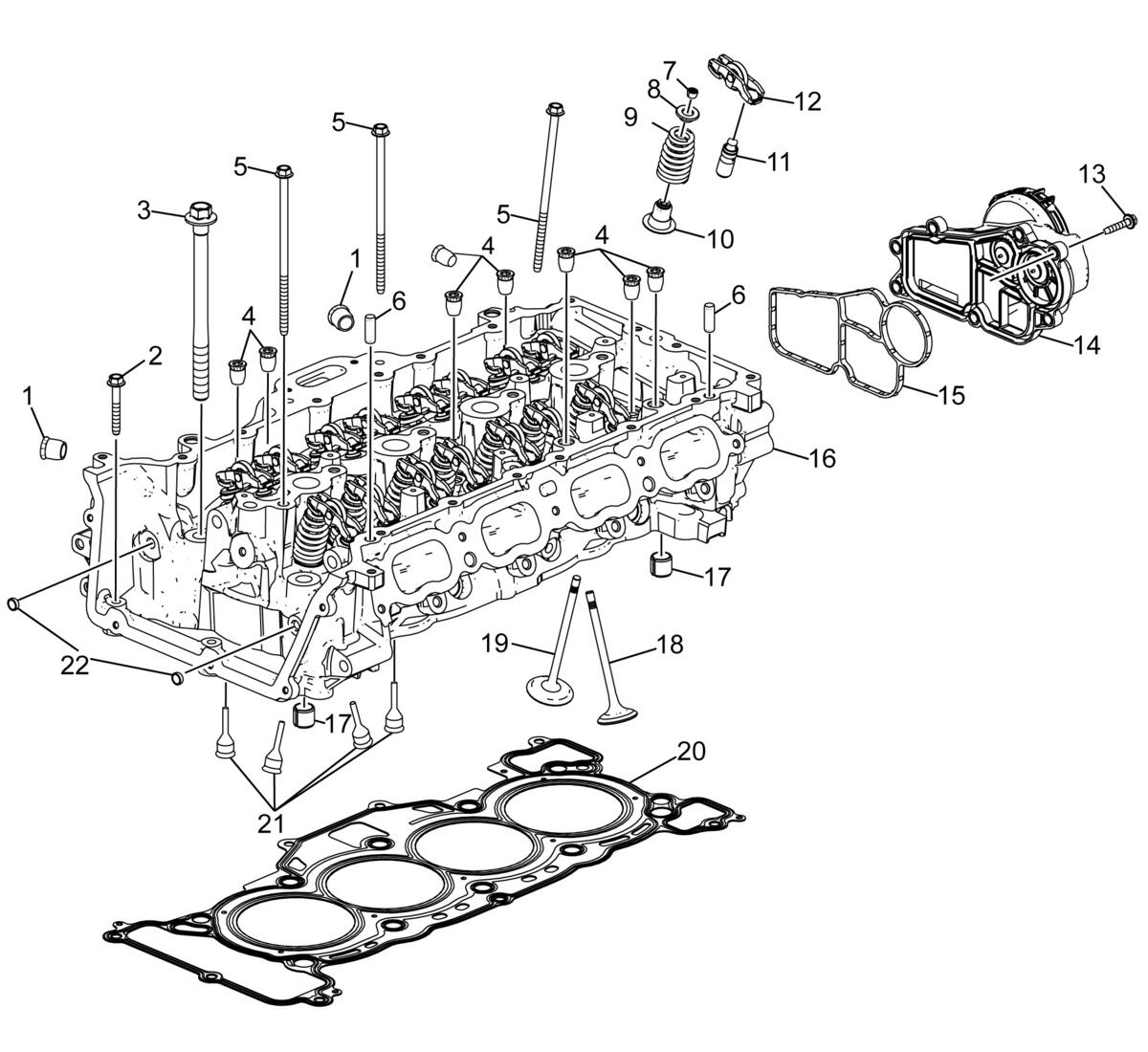

Cylinder Head Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Cylinder Head Core Hole Plug [2x] |
| 2 | Cylinder Head Bolt [5x] |
| 3 | Cylinder Head Bolt [10x] |
| 4 | Cylinder Head Core Hole Plug [8x] |
| 5 | Cylinder Head Bolt [3x] |
| 6 | Camshaft Cover Locating Pin [2x] |
| 7 | Valve Stem Key [32x] |
| 8 | Valve Spring Retainer [16x] |
| 9 | Valve Spring [16x] |
| 10 | Valve Stem Oil Seal [16x] |
| 11 | Hydraulic Valve Lash Adjuster [16x] |
| 12 | Valve Rocker Arm [16x] |
| 13 | Positive Crankcase Ventilation Oil Separator Bolt [7x] |
| 14 | Positive Crankcase Ventilation Oil Separator |
| 15 | Positive Crankcase Ventilation Oil Separator Gasket |
| 16 | Cylinder Head |
| 17 | Cylinder Head Locating Pin [2x] |
| 18 | Exhaust Valve [8x] |
| 19 | Intake Valve [8x] |
| 20 | Cylinder Head Gasket |
| 21 | Cylinder Head Core Hole Plug [4x] |
| 22 | Cylinder Head Oil Gallery Plug [2x] |
