Section 18 (Engine Mechanical - 2.7L (L3B) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

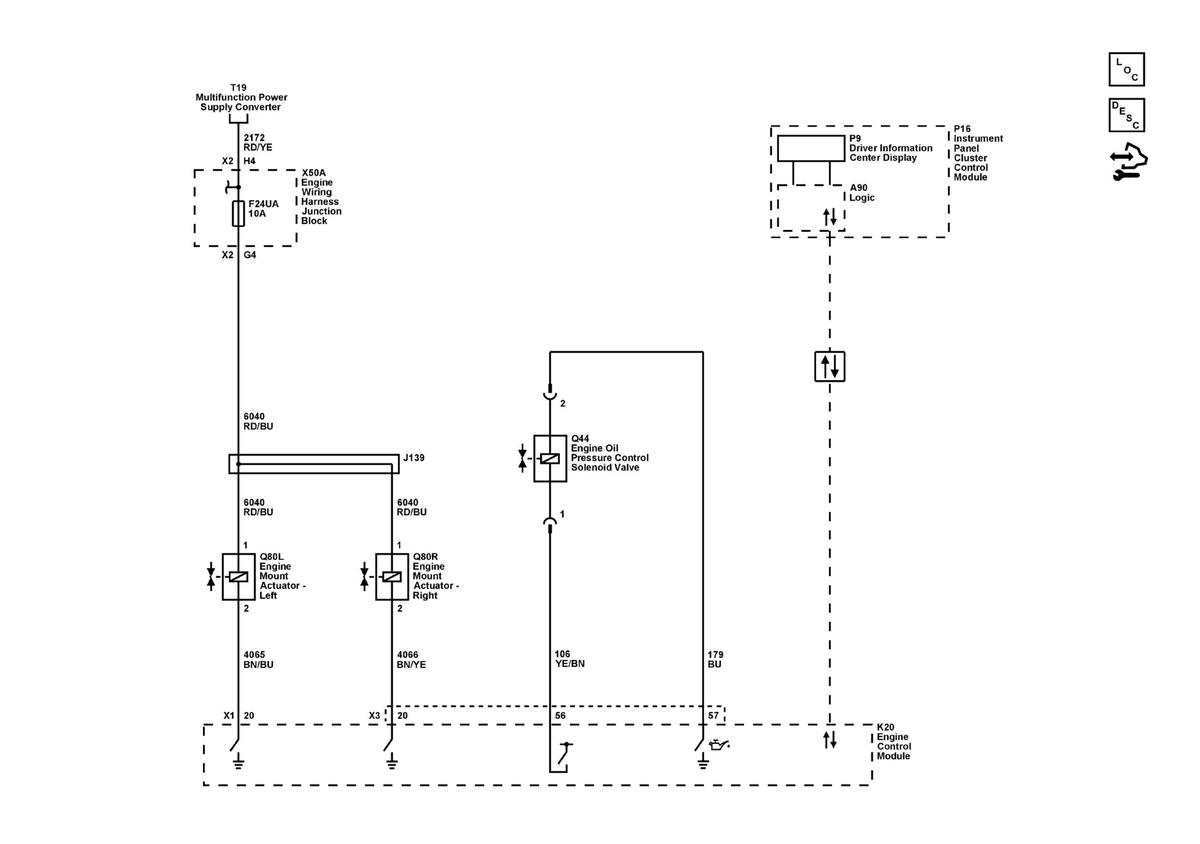

Engine Oil Pressure Control and Engine Mount Actuators (L3B)
Engine Oil Pressure Control and Engine Mount Actuators (L3B)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
