Alternate Method

WARNING: This page is about a different variant/trim than selected.
  1. Remove oil filter.

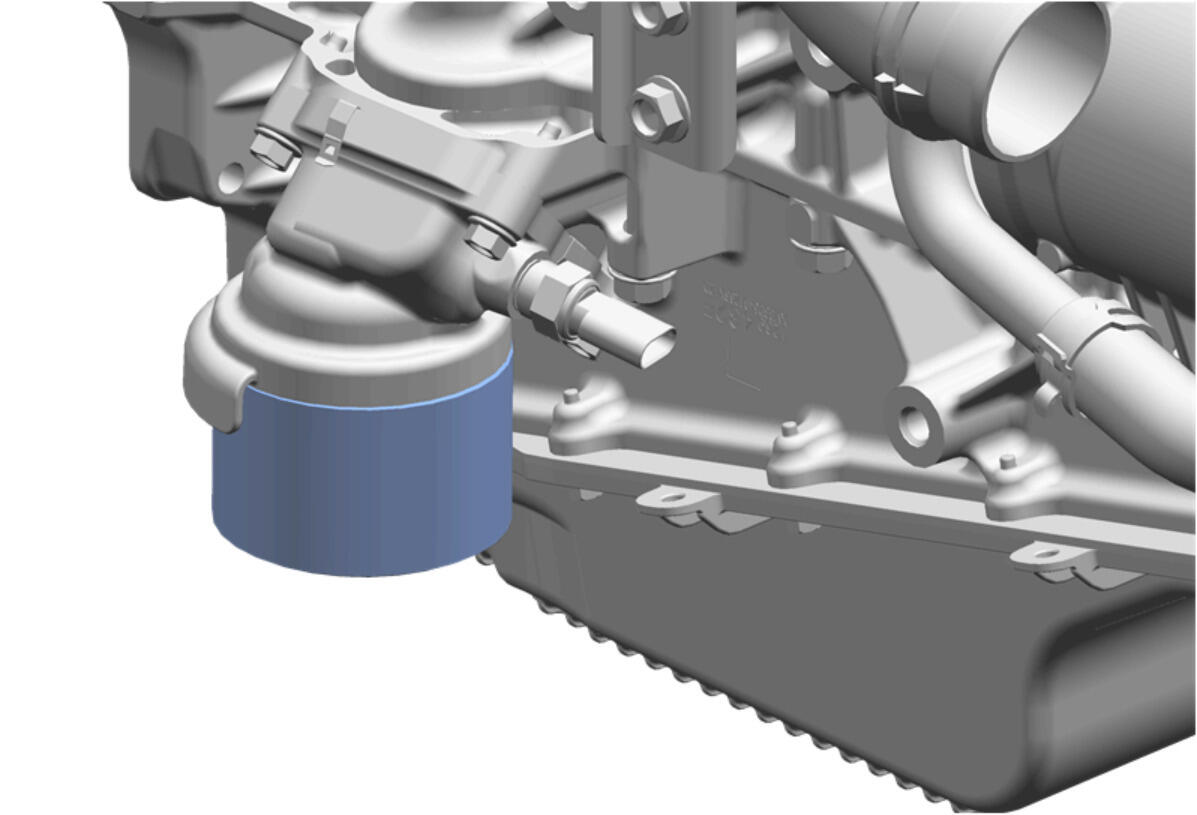

  2. GM5145484Courtesy of GENERAL MOTORS COMPANY

    Install the CH-48207  Kit and EN-52486  Oil Filter Adapter.

  3. At 1500 rpm, the oil pressure is 240 - 180 kPa (34.809 - 26.107 psi) and the oil temperature must be 20°C (65°F) or more.
  4. Remove the CH-48207  Kit.
  5. Remove the EN-52486  Oil Filter Adapter.
  6. Install NEW oil filter.
