Cleaning and Inspection Procedure - Required
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

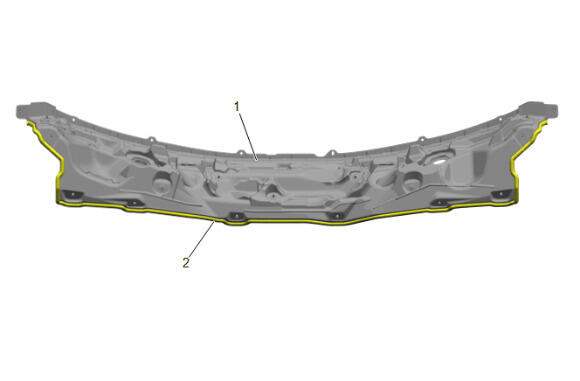

Inspect the plenum (1) and the frame surfaces of where the plenum is removed.
- Clean areas that the bead (2) is broken or damaged with a plastic scrapper on the body and plenum (1).
- Apply General Motors recommended Strip-Calk or equivalent to the plenum areas that are needed. Adhesives, Fluids, Lubricants, and Sealers
NOTE:
The following cleaning and inspection and/or overhaul steps are ONLY to be performed as determined necessary based on the condition of the part being removed with the intention of reinstallation. The labor time to perform any of these steps is not included in the base labor time and if required would need to be documented and submitted as Other Labor Hours for warranty claim reimbursement. A description of the repairs performed must be documented in the technician correction comments.
