Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

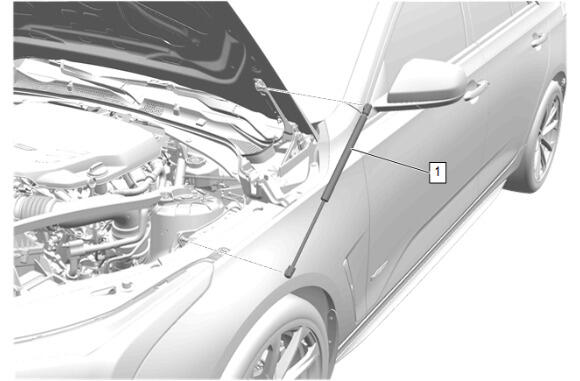

  1. GM5865320Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 metal clips at the ends of the hood strut (1).

  2. Hood Strut (1) - Remove
