Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The rear suspension cradle mount MUST be installed in the correct orientation as indicated by the arrow.
Apply a small amount of soap and water to the mount to ease installation.

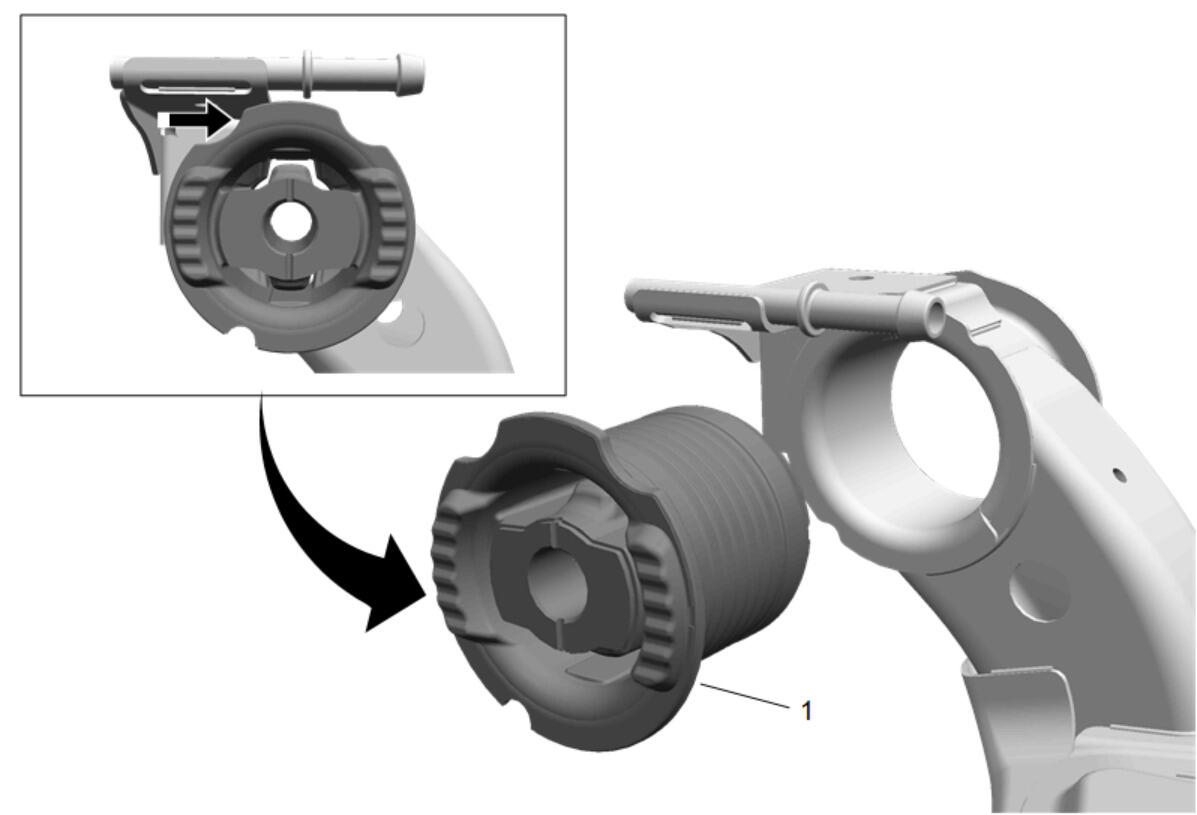

- Position the rear suspension cradle mount (1) in the cradle as indicated by the arrow.

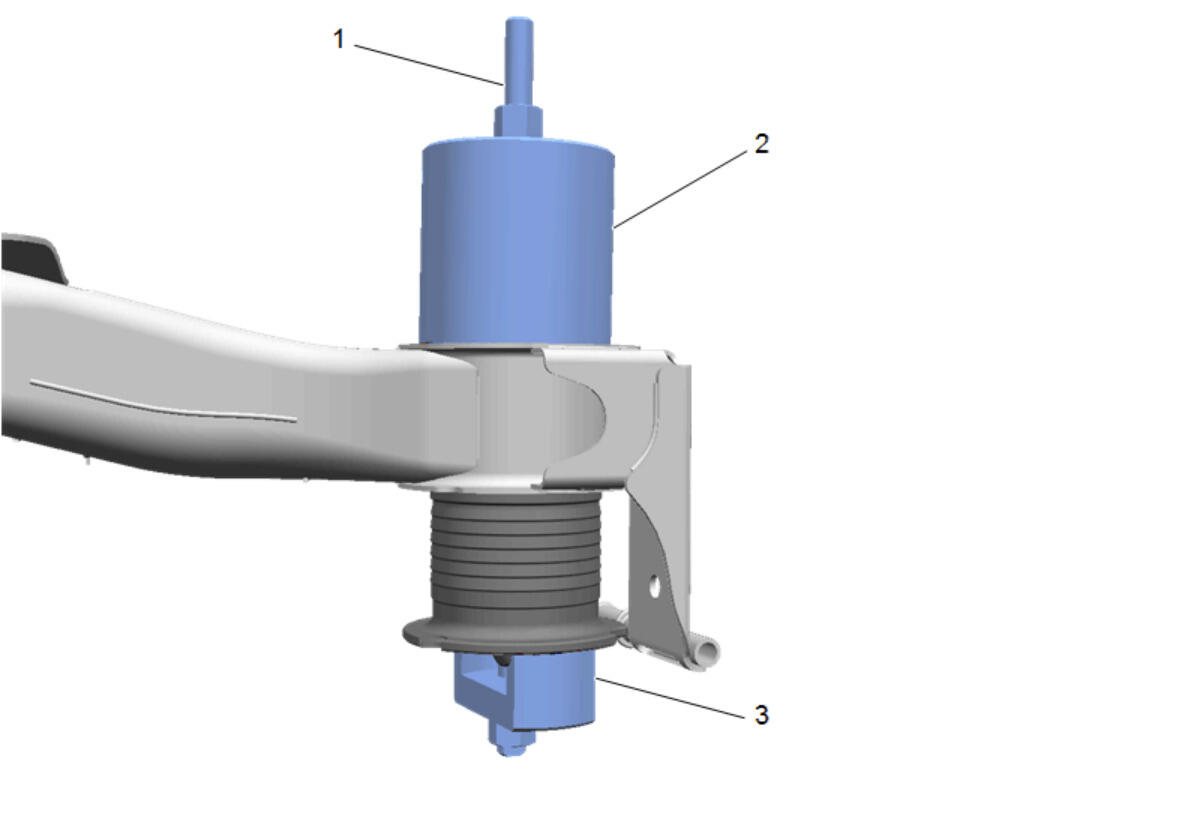

Using the DT-50806 kit (1), (2), and (3), install the rear suspension support bushings.
- With the aid of an assistant, position the rear suspension cradle onto the transmission jack and firmly secure the support to the jack with straps.
- Rear Suspension Cradle - Install - Rear Suspension Cradle Replacement (Blackwing) , or Rear Suspension Cradle Replacement (Non Blackwing)
- Remove the jack stand.
- Lower the vehicle. Lifting and Jacking the Vehicle
- Check the rear wheel alignment. Wheel Alignment Measurement
