Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Remove [2x]
Front Compartment Air Deflector Retainer (2) - Remove
Front Bumper Fascia Lower Stiffener Bolt (3) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

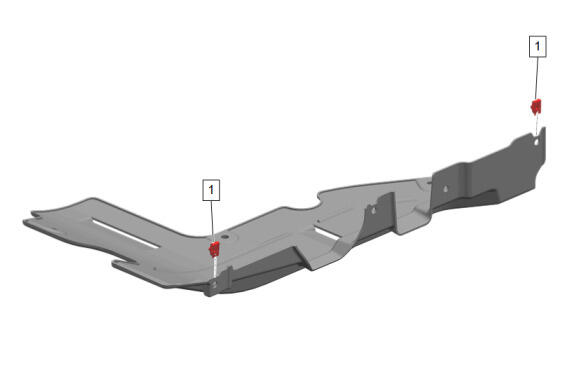

Front Compartment Lower Noise Shield Bracket Nut (1) - Remove [2x]
