Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Drivetrain and Front Suspension Cradle (1) - Remove - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (RWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (Blackwing)

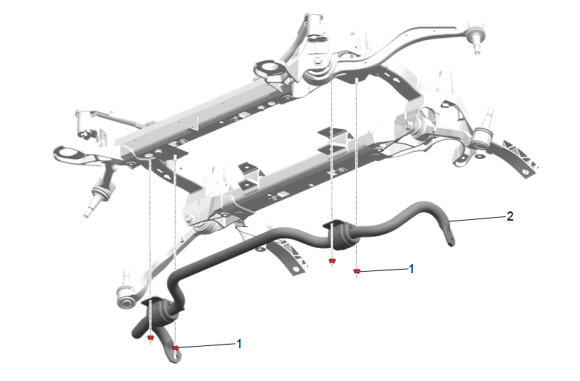

Front Stabilizer Shaft Insulator Clamp Nut (1) - Remove [4x]
- Front Stabilizer Shaft (2) @ Drivetrain and Front Suspension Cradle - Remove
- NOTE:
Left side shown, right side similar.
Front Lower Control Arm Rear Bolt- Left Side and Right Side (1) - Remove and DISCARD [2x]
- Front Lower Control Arm Rear Nut- Left Side and Right Side (2) - Remove [2x]
- Front Lower Control Rear Link- Left Side and Right Side (3) @ Drivetrain and Front Suspension Cradle - Remove [2x]
- NOTE:
Left side shown, right side similar.

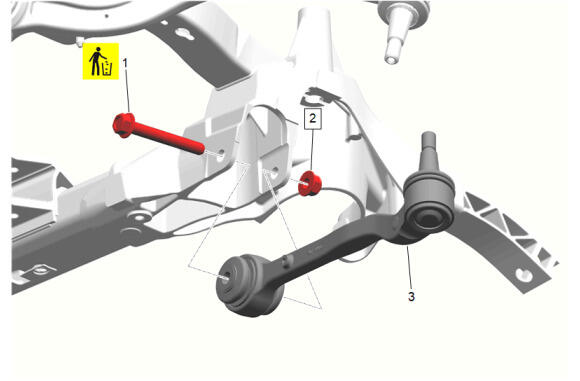

Front Lower Control Arm Front Bolt- Left Side and Right Side (1) - Remove and DISCARD [2x]
- Front Lower Control Arm Front Nut- Left Side and Right Side (2) - Remove [2x]
- Front Lower Control Front Link- Left Side and Right Side (3) @ Drivetrain and Front Suspension Cradle - Remove [2x]

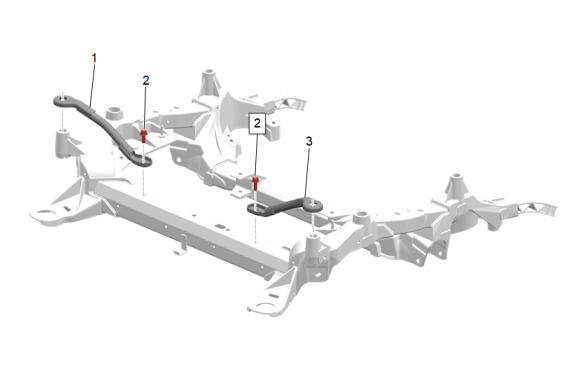

Front Crossmember Brace Bolt (2) - Remove [2x]
- Front Crossmember Brace- Right Side (1) @ Drivetrain and Front Suspension Cradle - Remove
- Front Crossmember Brace- Left Side (3) @ Drivetrain and Front Suspension Cradle - Remove
