Removal Procedure
Vehicle alignment is not required if the cradle is being lowered or dropped to perform another procedure. This vehicle is equipped with a cradle to body aligning feature: cradle to body through holes or self-aligning pins that are part of the cradle or body. Only align if replacing the cradle with a NEW part and transferring components.
- Install the engine support fixture.
- RPO LSY Engine - Engine Support Fixture
- RPO L3B Engine - Engine Support Fixture

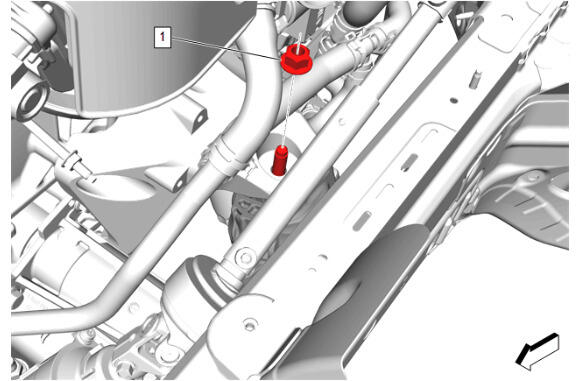

Engine Mount Nut-Left Side (1) - Remove
Engine Mount Nut-Right Side (1) - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [10x]
Front Bumper Fascia Air Deflector Screw (1) - Remove [3x]
Front Bumper Fascia Center Air Deflector Bolt (1) - Remove [5x]
- Front Bumper Fascia Center Air Deflector Retainer (2) - Remove [2x]
Pull the front bumper fascia center air deflector (1) rearward and down from the front bumper fascia.
Front Wheelhouse Liner Bolt (1) - Remove
- Engine Front Splash Shield Retainer (2) - Remove
- Engine Front Splash Shield Bolt (3) - Remove
Front Wheelhouse Liner Bolt (3) - Remove
- Engine Front Splash Shield Retainer (2) - Remove
- Engine Front Splash Shield Bolt (1) - Remove
Front Compartment Air Deflector Bolt (1) - Remove [6x]
Front Compartment Air Deflector - (1) Remove
- NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.
Front Lower Control Arm Ball Stud Nut (1) - Loosen
Using the CH-42188-B Ball Joint Separator (1), separate the front lower control rear link from the steering knuckle.
Front Lower Control Arm Ball Stud Nut (1) - Remove
- Remove the front lower control rear link from the steering knuckle.
- NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.
Front Lower Control Arm Ball Stud Nut (1) - Loosen
Using the CH-42188-B Ball Joint Separator (1), separate the front lower control front link from the steering knuckle.
Front Lower Control Arm Ball Stud Nut (1) - Remove
- Remove the front lower control front link from the steering knuckle.
- NOTE:
Some components not shown for graphic clarity.
Loosen the left and right steering linkage outer tie rod nuts (1).
- CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.
NOTE:Some components not shown for graphic clarity.
Using the CH-42188-B Ball Joint Separator (1), separate the left and right steering linkage outer tie rods (2) from the left and right steering knuckles.
- NOTE:
Some components not shown for graphic clarity.
Remove the left and right steering linkage outer tie rod nuts (1).
Separate the left and right steering linkage outer tie rods (1) from the left and right steering knuckles.
Remove the stabilizer shaft link nut (1) from the left and right side stabilizer shaft link.
- Separate the stabilizer shaft link from the stabilizer shaft on the left and right side.
Reposition a portion of the front wheelhouse if equipped with a engine auxiliary radiator.
- Front Wheelhouse Liner Bolt (1) - Remove [5x]
- Front Wheelhouse Liner Retainer (2) - Remove
- Front Wheelhouse Liner (3) - Reposition
{ If equipped } Charge Air Cooler Bracket Bolt (1) @ Charge Air Cooler Bracket (2) - Remove [2x]
- Touch a metal ground point in order to remove your body's static charge before servicing any electronic component; especially after sliding across the vehicle seat.
- Do not touch exposed terminals. Terminals may connect to circuits susceptible the ESD damage.
- Do not allow tools to contact exposed terminals when servicing connectors.
- Do not remove components from their protective packaging until required to do so.
- Avoid the following actions unless required by the diagnostic procedure:
- Jumpering or grounding of the components or connectors.
- Connecting test equipment probes to components or connectors. Connect the ground lead first when using test probes.
- Ground the protective packaging of any component before opening. Do not rest solid-state components on metal workbenches, or on top of TVs, radios, or other electrical devices.
Disconnect the steering gear electrical connectors. (1)
- The steering column
- The intermediate shaft (s)
- The steering gear
- Secure the steering wheel so it will not turn when the mid intermediate steering shaft is disconnected.
Mid Intermediate Steering Shaft Bolt (2) @ Intermediate Steering Shaft - Remove
- Separate the mid lower intermediate steering shaft (1) from the intermediate steering shaft by pushing the lower portion of the mid lower intermediate shaft upward and rearward along the axis of the upper portion of the mid lower intermediate steering shaft.
- Support the radiator.
{ If equipped } Front Crossmember Brace Nut (1) - Remove [4x]
- { If equipped } Front Crossmember Brace (2) - Remove
Front Wheelhouse Liner Retainer (2) @ Front Wheelhouse Liner (1) - Remove
Front Crossmember Brace Bolt (1) - Remove [4x]
- Front Crossmember Brace Nut (2) - Remove
- Front Crossmember Brace-Right Side (3) - Remove
Front Wheelhouse Liner Retainer (1) @ Front Wheelhouse Liner (2) - Remove
Front Crossmember Brace Bolt (1) - Remove [4x]
- Front Crossmember Brace Nut (2) - Remove
- Front Crossmember Brace-Left Side (3) - Remove
Disconnect the electrical connectors (1) at the engine mounts.
Install EN-39580 engine support stand under the drivetrain and front suspension cradle.
- Lower the vehicle until the drivetrain and front suspension cradle is resting lightly on the jackstands.
- Drivetrain and Front Suspension Cradle Rear Bolt (2) - Remove and DISCARD [2x]
- Drivetrain and Front Suspension Cradle Front Bolt (1) - Remove and DISCARD [4x]
- With the aid of an assistant, carefully raise the body from the drivetrain and front suspension cradle.
- Disconnect any harness retainers attached to the drivetrain and front suspension cradle.
- Ensure when raising the body, the following items are clear from the drivetrain and front suspension cradle:
- Vacuum lines
- Steering knuckles
- Electrical wiring harnesses
- Oil coolers lines
Drivetrain and Front Suspension Cradle (1) - Remove
Electrostatic discharge (ESD) can damage many solid-state electrical components. ESD susceptible components may or may not be labeled with the ESD symbol. Handle all electrical components carefully. Use the following precautions in order to avoid ESD damage:
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
