Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

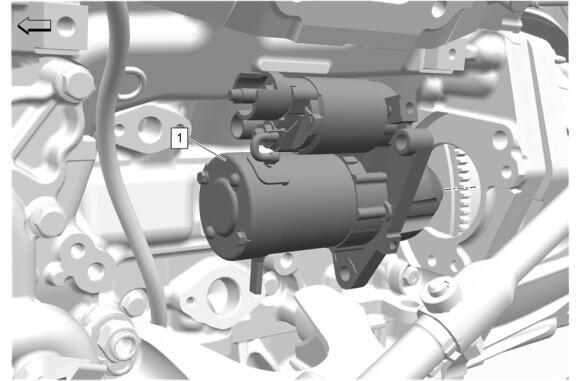

  1. GM5951972Courtesy of GENERAL MOTORS COMPANY

    Starter(1) - Install

  2. GM5950612Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Starter Bolt(2) - Install and tighten - Fastener Specifications

  3. Starter Bolt(1) - Install and tighten - Fastener Specifications

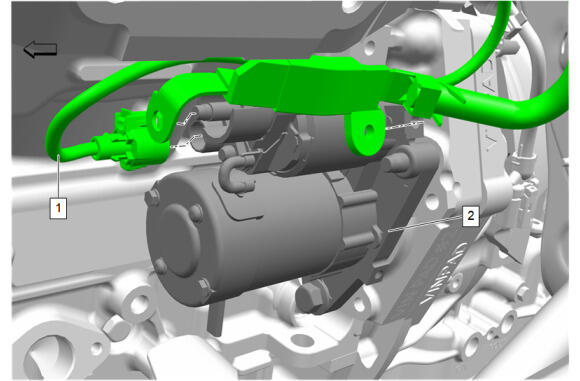

  4. GM5950484Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness(1) - Reposition

  5. Wiring Harness(1)@Starter(2) - Connect
  6. GM5950348Courtesy of GENERAL MOTORS COMPANY

    Starter Solenoid Cable Retainer(2) - Install and tighten - Fastener Specifications

  7. Starter Solenoid Cable Nut(1) - Install and tighten - Fastener Specifications

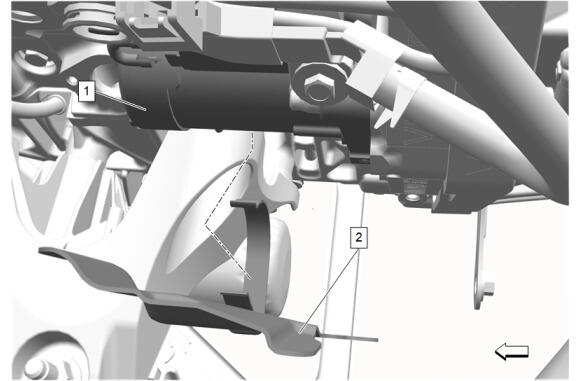

  8. GM5949804Courtesy of GENERAL MOTORS COMPANY

    Starter Heat Shield(2)@Starter(1) - Install

  9. GM5949435Courtesy of GENERAL MOTORS COMPANY

    Starter Shield Bolt(1) - Install and tighten - Fastener Specifications

  10. Compressor Air Intake TurbochargerLeft Side - Install
  11. GM5880454Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Gasket(2) - Install NEW

  12. Compressor Air Intake Turbocharger(1) - Remove
  13. GM5880453Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Bolt(1) - Install and tighten[4x] - Fastener Specifications

  14. GM5892303Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Coolant Feed Pipe(3)@Compressor Air Intake Turbocharger - Install

  15. Turbocharger Coolant Feed and Return Pipe Gasket(2)@Compressor Air Intake Turbocharger - Install NEW[2x]
  16. Turbocharger Coolant Feed and Return Pipe Bolt(1) - Install and tighten - Fastener Specifications
  17. GM5875352Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Oil Feed Pipe(3) - Install

    18. NOTE:

    Some components not shown for graphic clarity.

  18. Turbocharger Oil Feed Pipe Washer(2) - Install NEW
  19. Turbocharger Oil Feed Pipe Bolt(1) - Install and tighten - Fastener Specifications
  20. GM5875351Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Turbocharger Oil Feed Pipe Fitting Clip (2) - Install

  21. Positive Assurance Cap (1) - Install
  22. GM5879216Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield(1) - Install

  23. GM5879181Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt(1) - Install and tighten - Fastener Specifications

  24. GM5872277Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Exhaust Pipe Gasket(2) - Install NEW

  25. Warm Up Three-Way Catalytic Converter(1) - Install
  26. GM5872256Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut(1) - Install and tighten[4x] - Fastener Specifications

  27. Connect the heated oxygen sensor electrical connector.[2x]
  28. GM5867464Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace(2) - Install

  29. Catalytic Converter Brace Bracket Nut(1) - Install and tighten[5x] - Fastener Specifications
  30. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket(2) - Install NEW

  31. With the aid of an assistant, install the exhaust muffler (1).
  32. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut(1) - Install and tighten[4x] - Fastener Specifications

  33. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Connect

  34. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Connect

  35. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler(1)@Exhaust Intermediate Pipe Insulator-Right Side(2) - Install[2x]

  36. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler(1)@Exhaust Intermediate Pipe Insulator-Left Side(2) - Install[2x]

  37. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp(1) - Tighten[2x] - Fastener Specifications

  38. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut(1) - Install and tighten[2x] - Fastener Specifications

  39. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  40. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten[6x] - Fastener Specifications
  41. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side(5) - Install

  42. Underbody Rear Air Deflector Nut- Right Side(3) - Install and tighten[3x] - Fastener Specifications
  43. Underbody Rear Air Deflector Bolt- Right Side(2) - Install and tighten[3x] - Fastener Specifications
  44. Underbody Rear Air Deflector Nut- Right Side(4) - Install and tighten[2x] - Fastener Specifications
  45. Rear Wheelhouse Liner Bolt- Right Side(1) - Install and tighten - Fastener Specifications
  46. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side(5) - Install

  47. Underbody Rear Air Deflector Nut- Left Side(2) - Install and tighten[3x] - Fastener Specifications
  48. Underbody Rear Air Deflector Bolt- Left Side(3) - Install and tighten[3x] - Fastener Specifications
  49. Underbody Rear Air Deflector Nut- Left Side(4) - Install and tighten[2x] - Fastener Specifications
  50. Rear Wheelhouse Liner Bolt- Left Side(1) - Install and tighten - Fastener Specifications
  51. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side(2) - Install[2x]

  52. Rear Tire Front Air Deflector Bolt- Left Side and Right Side(1) - Install and tighten[4x] - Fastener Specifications
  53. Lower the vehicle.
  54. GM5879148Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt(1) - Install and tighten[2x] - Fastener Specifications

  55. GM5873812Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Coolant Return Pipe(3) - Install

  56. Turbocharger Coolant Feed and Return Pipe Gasket(2) - Install NEW[2x]
  57. Turbocharger Coolant Feed and Return Pipe Bolt(1) - Install and tighten - Fastener Specifications
  58. GM5873802Courtesy of GENERAL MOTORS COMPANY

    Retaining Clip(1) - Install

  59. GM5860358Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct(1) - Install

  60. GM5860357Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring(3) - Engage

  61. Charge Air Bypass Valve Hose(2) - Install
  62. Charge Air Bypass Valve Hose Clamp(1) - Tighten - Fastener Specifications
  63. GM5860356Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Clamp(2) - Tighten - Fastener Specifications

  64. Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube(1) - Connect - Plastic Collar Quick Connect Fitting Service
  65. GM5846598Courtesy of GENERAL MOTORS COMPANY

    Install the NEW positive crankcase ventilation fresh air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  66. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  67. Intake Manifold Cover(2) - Install
  68. Intake Manifold Cover Bolt(1) - Install and tighten - Fastener Specifications
  69. Oil Filler Cap - Install
  70. Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716)Cooling System Draining and Filling (LSY Static Fill)Cooling System Draining and Filling (LSY with V03 Static Fill)Cooling System Draining and Filling (L3B Static Fill)Cooling System Draining and Filling (L3B GE 47716)Cooling System Draining and Filling (LSY with V03 GE 47716)Cooling System Draining and Filling (LF4 Static Fill)Cooling System Draining and Filling (LF4 GE 47716)
  71. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
