Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

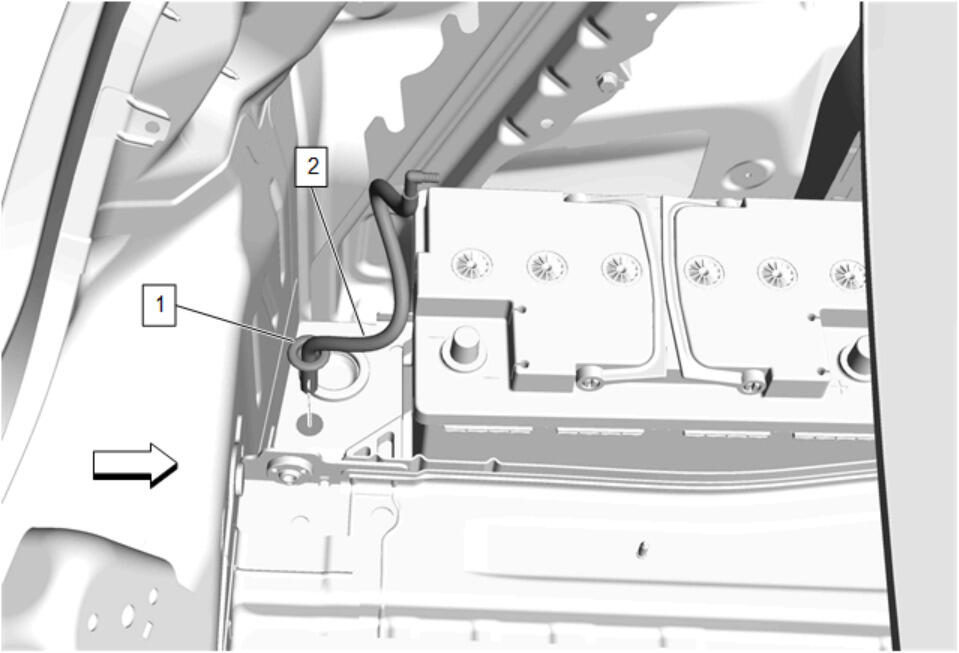

  1. GM5316893Courtesy of GENERAL MOTORS COMPANY

    Grommet (1) - Install

  2. Battery Vent Hose(2) - Install
  3. GM5316696Courtesy of GENERAL MOTORS COMPANY

    Battery Vent Hose(1) - Install

  4. GM5310002Courtesy of GENERAL MOTORS COMPANY

    Battery Access Cover (1) - Install
