Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

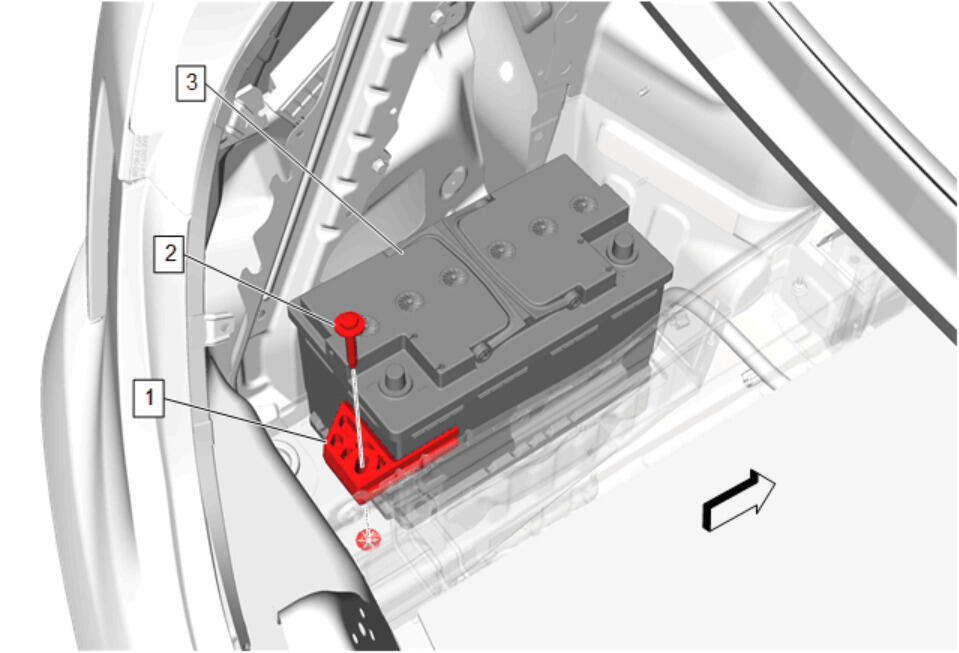

Battery(3) - Install
- Battery Hold Down Retainer(1) - Install
- Battery Hold Down Bolt(2) - Install and tighten - Fastener Specifications

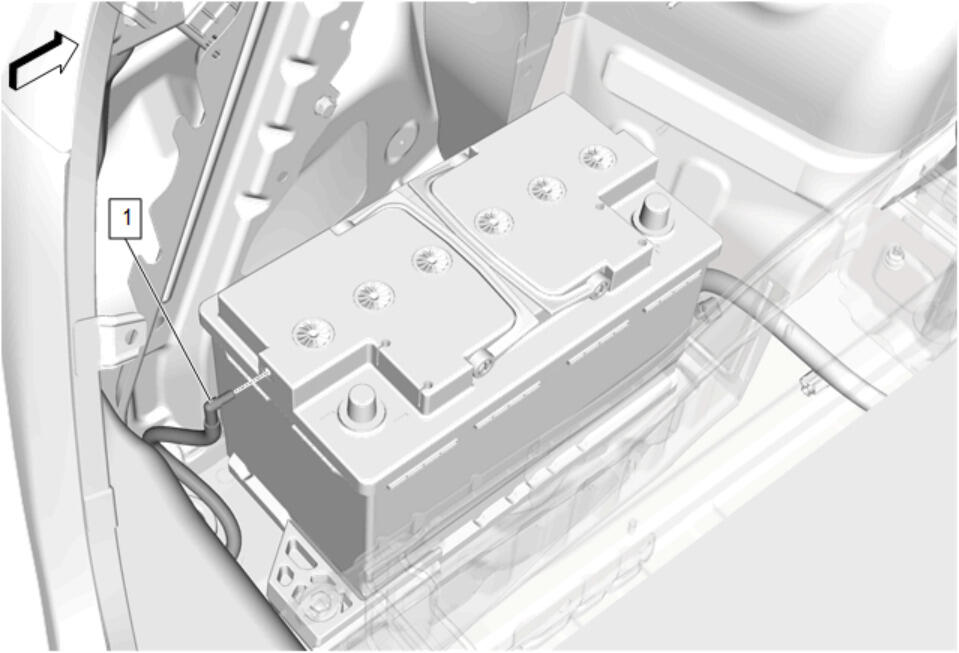

Battery Vent Hose(1) - Install

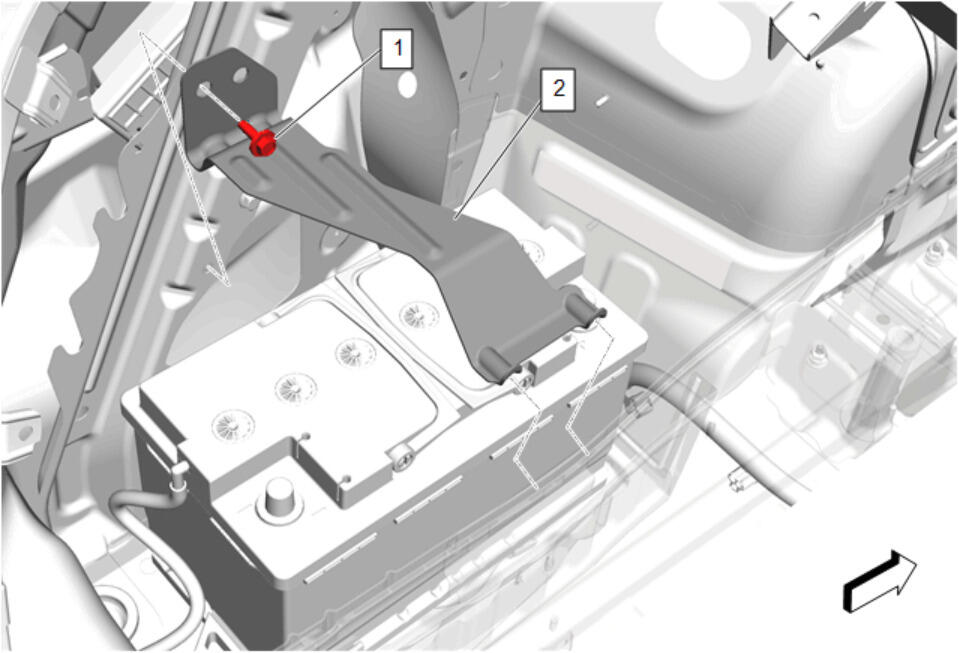

Battery Hold Down Retainer(2) - Install
- Battery Hold Down Strap Bolt(1) - Install and tighten - Fastener Specifications

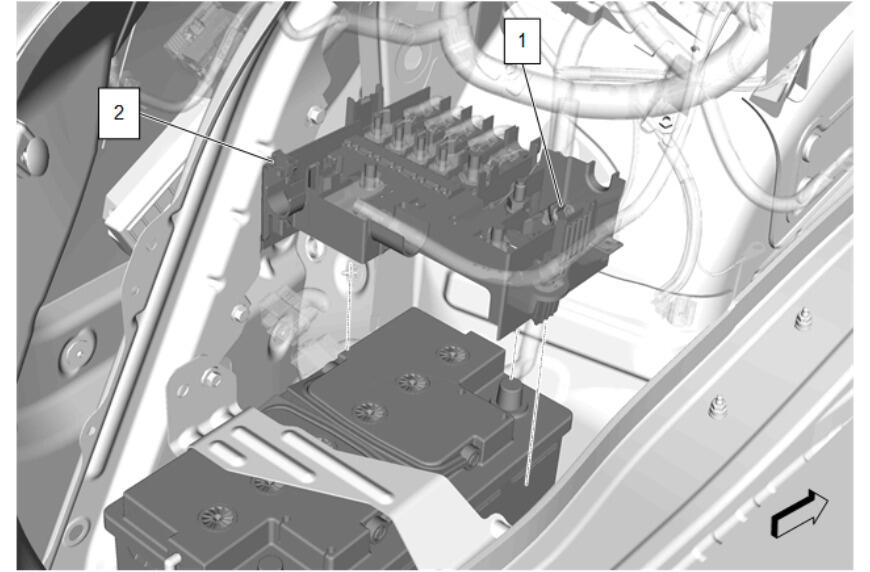

Install the battery distribution fuse block (2) and engage the retaining tabs.
- Tighten the battery positive post clamp nut (1). Fastener Specifications

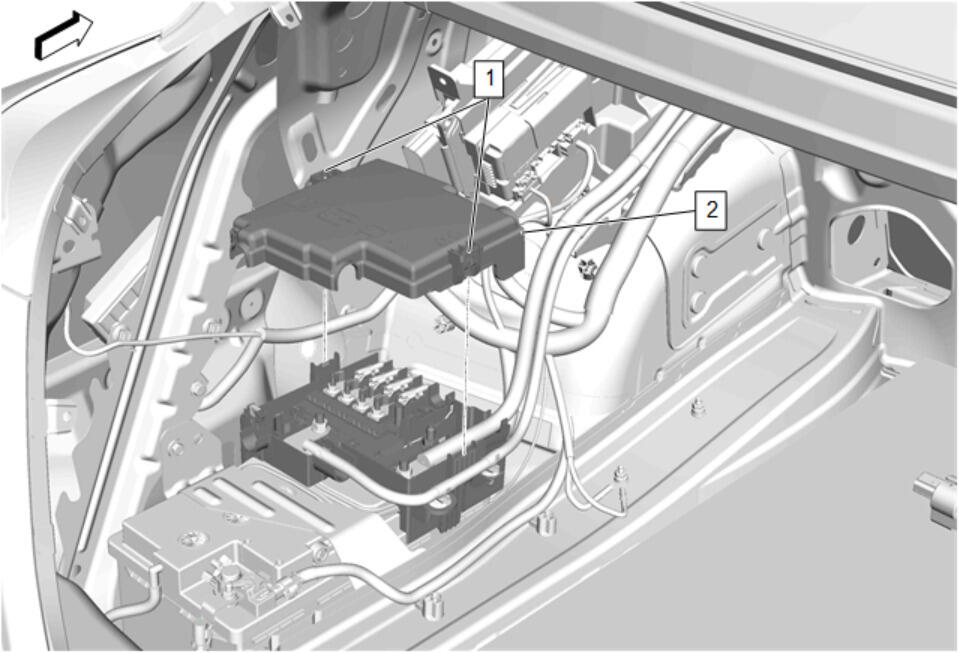

Rear Body Fuse Block Cover(2) - Install
- Retaining Tab(1) - Engage[2x]
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
Rear Compartment Side Trim-Left Side(2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install[4x]
Rear End Trim Finish Panel(1) - Install
Rear End Trim Finish Panel Opening Cover(1) - Install
Rear Compartment Floor Panel Trim(1) - Install
Cargo Tie Down Loop(3) - Install[2x]
- Cargo Tie Down Loop Bolt(2) - Install and tighten[2x] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap(1) - Install[2x]
CAUTION:
Refer to Fastener Caution
