Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a small flat-bladed tool to disengage integral tabs on caro tie down loop bolt cap

Cargo Tie Down Loop Bolt Cap(1) - Remove[2x]
Cargo Tie Down Loop Bolt(2) - Remove[2x]
Cargo Tie Down Loop(3) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Use a small flat-bladed tool to disengage integral tabs on rear end trim finish panel opening cover (1).
Rear End Trim Finish Panel Opening Cover(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

With a flat bladed plastic trim tool, disengage the integral clips.
Rear End Trim Finish Panel(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.

Rear Compartment Side Trim Insulator Retainer (1) - Remove[3x]
Rear Compartment Side Trim-Left Side(2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

WARNING:
Unless directed otherwise, the ignition must be OFF with the key removed, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components.

For Vehicles equipped with OnStar® (UE1) with Back Up Battery:

The Back Up Battery is a redundant power supply to allow limited OnStar® functionality in the event of a main vehicle battery power disruption to the VCIM (OnStar®module). Do not disconnect the main vehicle battery or remove the OnStar® fuse with the ignition key in any position other than OFF. Retained accessory power should be allowed to time out or be disabled (simply opening the driver door should disable retained accessory power) before disconnecting power. Disconnecting power to the OnStar® module in any way while the ignition is On or with retained accessory power activated may cause activation of the OnStar® Back-Up Battery system and will discharge and permanently damage the back-up battery. Once the Back-Up Battery is activated it will stay on until it has completely discharged. The back-up battery is not rechargeable and once activated the back-up battery must be replaced.

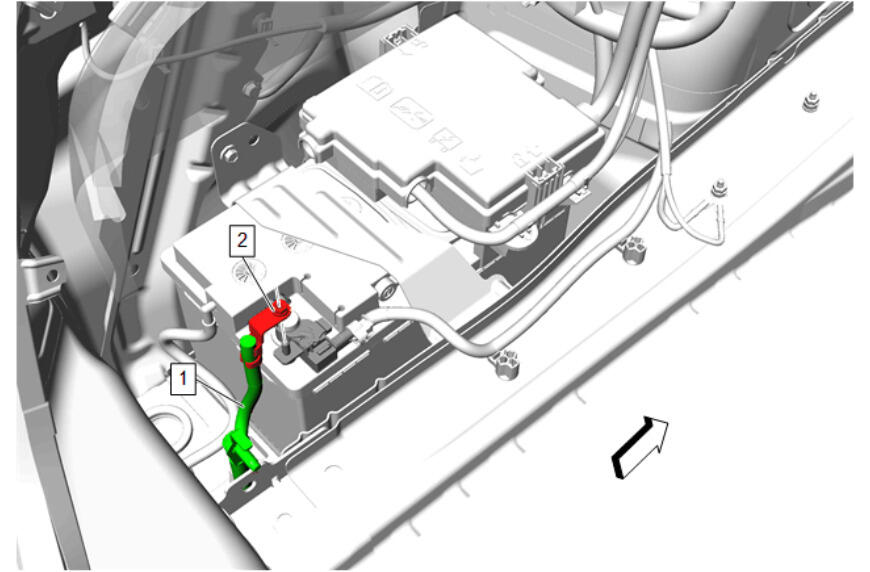

Battery Negative Cable Nut(2)@Battery Monitor Module - Remove
Battery Negative Cable(1) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

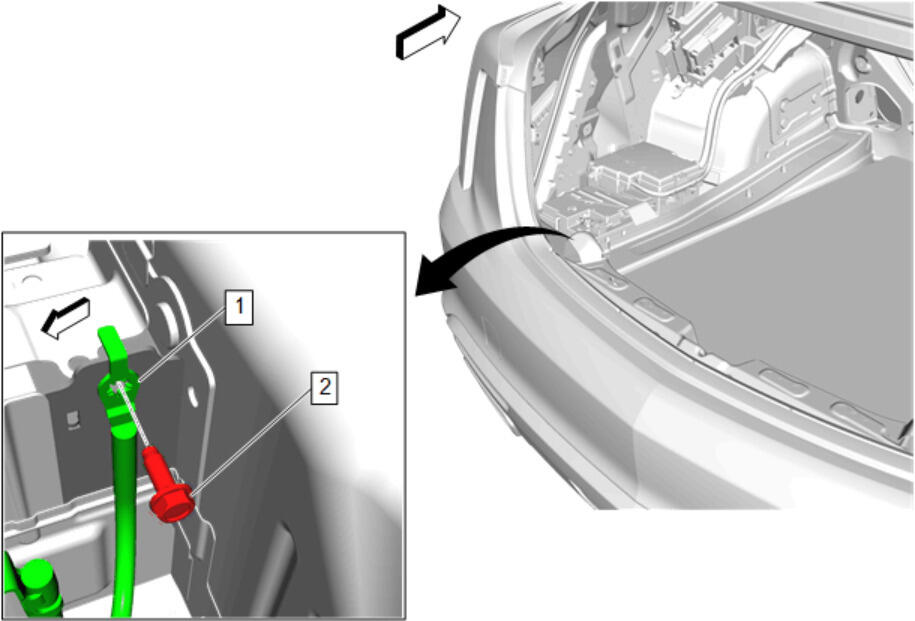

Battery Negative Cable Bolt(2)@Rear Bumper Impact Bar Bracket - Remove
Battery Negative Cable(1) - Remove
