Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

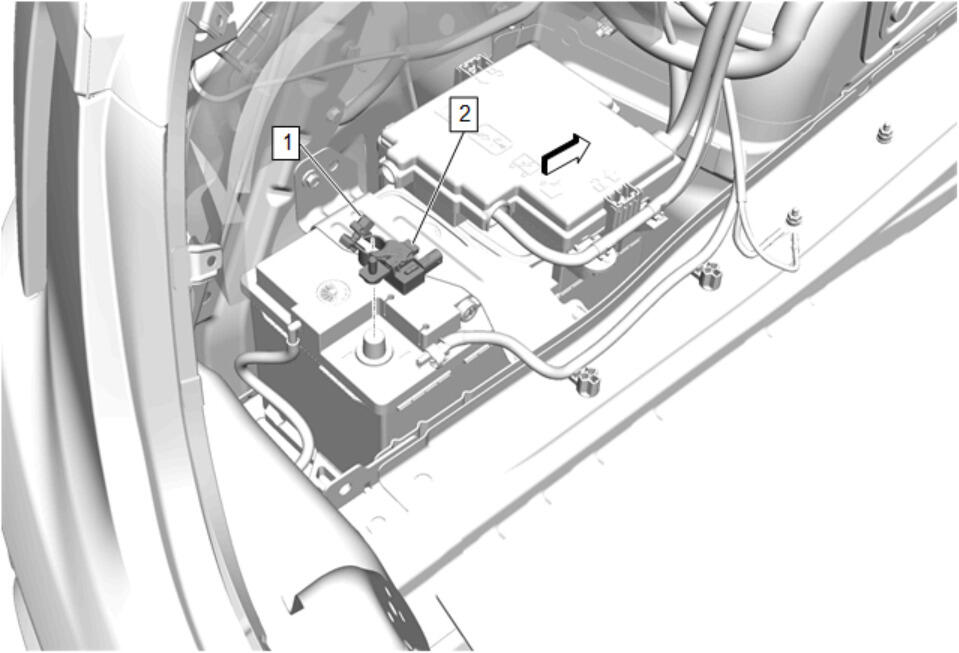

Battery Monitor Module(2) - Install
- Battery Post Negative Cable Clamp Nut(1) - Tighten - Fastener Specifications

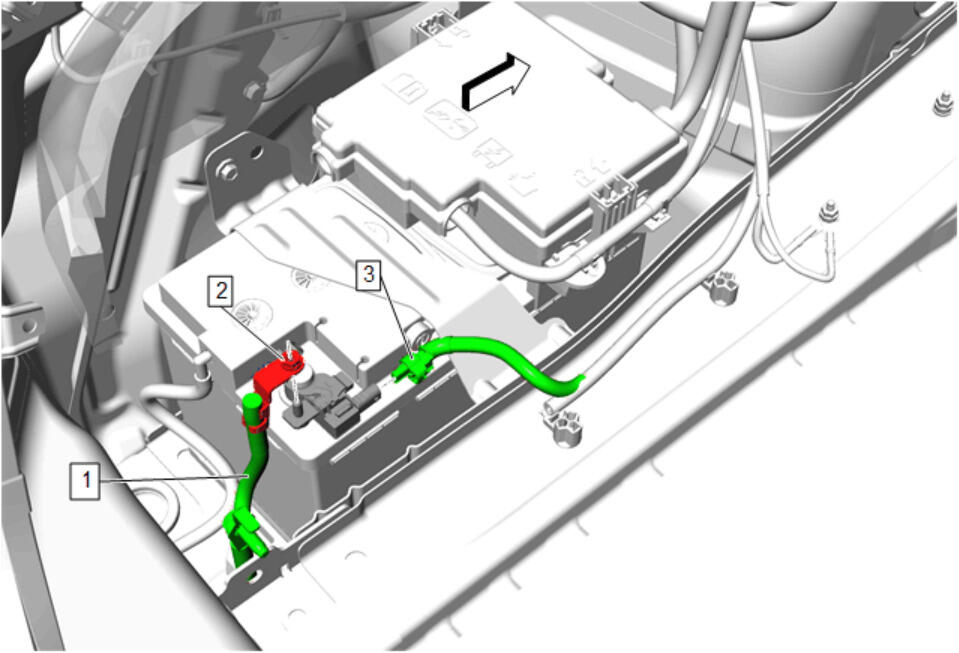

Battery Negative Cable(1) - Install
- Battery Negative Cable Nut(2)@Battery Monitor Module - Install and tighten - Fastener Specifications
- Electrical Connector(3) - Connect
Battery Access Cover (1) - Install
CAUTION:
Refer to Fastener Caution
