Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Fuse Block Cover(1) - Remove
- Auxiliary Generator Battery Jumper Cable Nut(2) - Remove
- Battery Positive Cable Nut(3) - Remove
- Battery Negative Cable Ground Bolt(4) - Remove
- Retainer(5) - Disengage[3x]
- Auxiliary Generator Battery Jumper Cable(6) - Reposition away

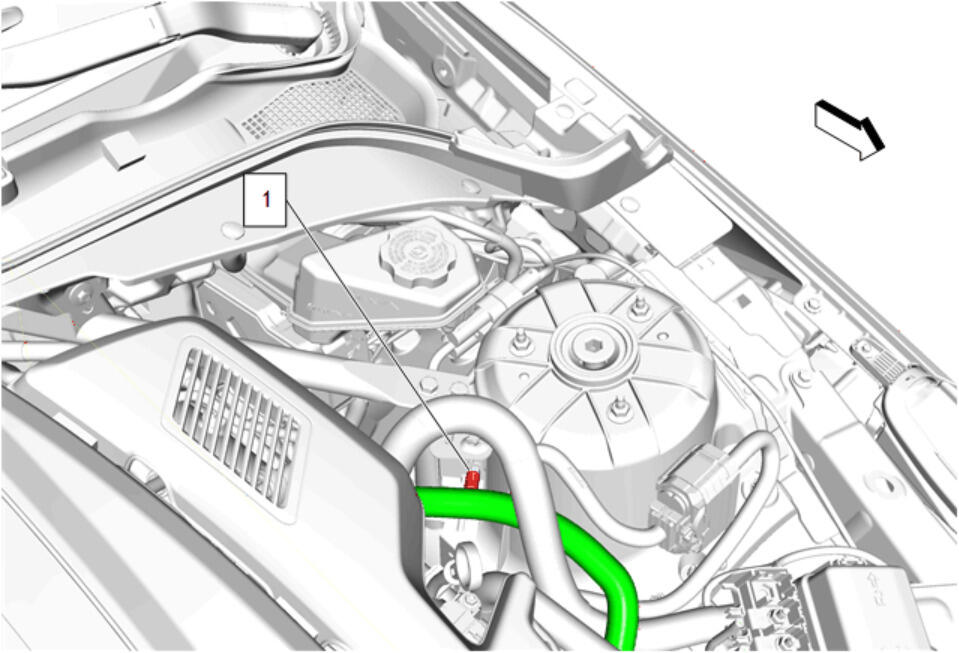

Retainer(1) - Disengage
- Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716)Cooling System Draining and Filling (LSY Static Fill)Cooling System Draining and Filling (LSY with V03 Static Fill)Cooling System Draining and Filling (L3B Static Fill)Cooling System Draining and Filling (L3B GE 47716)Cooling System Draining and Filling (LSY with V03 GE 47716)Cooling System Draining and Filling (LF4 Static Fill)Cooling System Draining and Filling (LF4 GE 47716)
Radiator Inlet Hose Clamp(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose Clip(2)@Radiator Inlet Hose Bracket - Remove
- Radiator Inlet Hose(3)@Radiator - Remove
Radiator Inlet Hose Clamp(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose(2)@Engine Coolant Flow Control Valve - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle

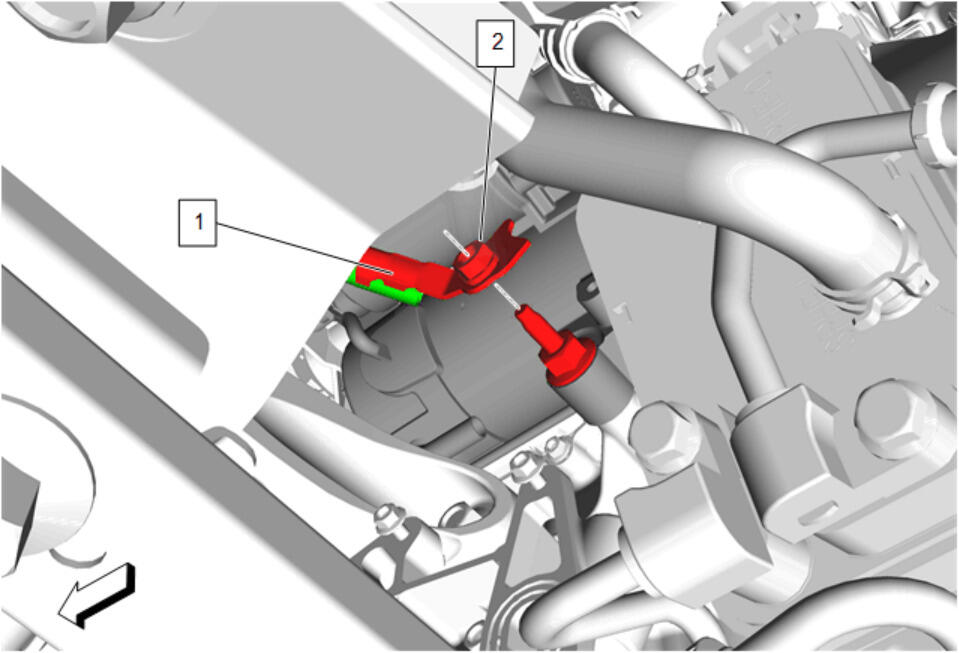

Battery Positive Cable Nut(2)@Generator - Remove
- Auxiliary Generator Battery Jumper Cable(1) - Remove

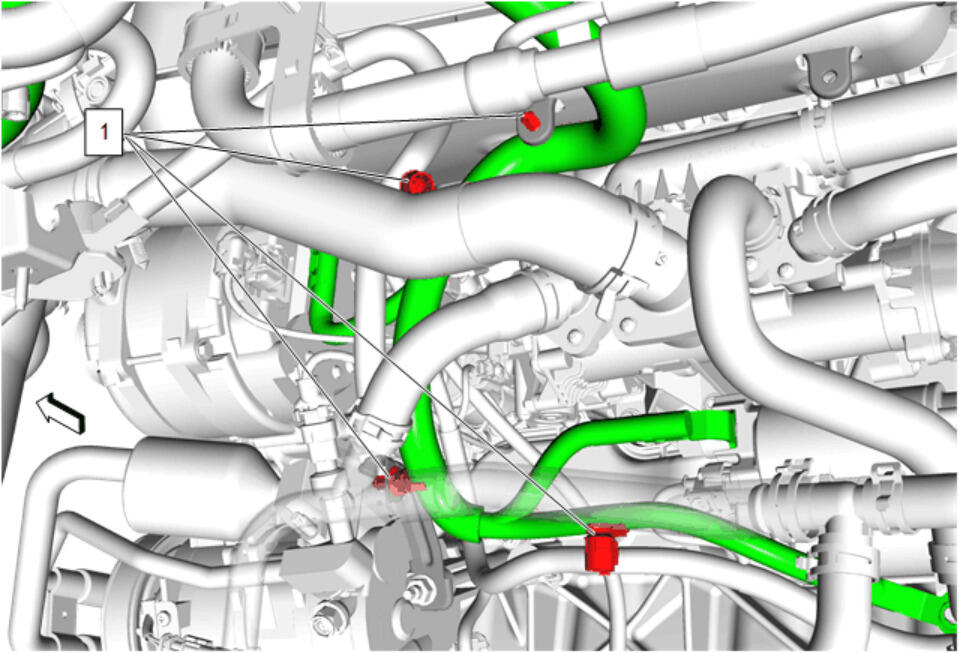

Retainer(1) - Disengage[4x]

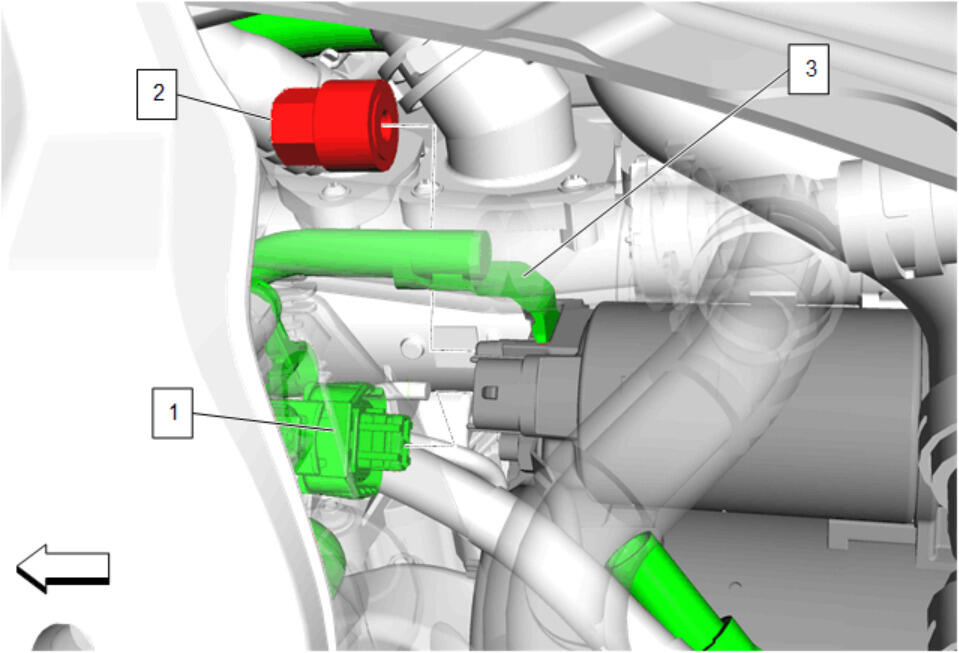

Electrical Connector(1) - Disconnect
- Battery Positive Cable Nut(2)@Starter Solenoid - Remove
- Auxiliary Generator Battery Jumper Cable(3) - Remove

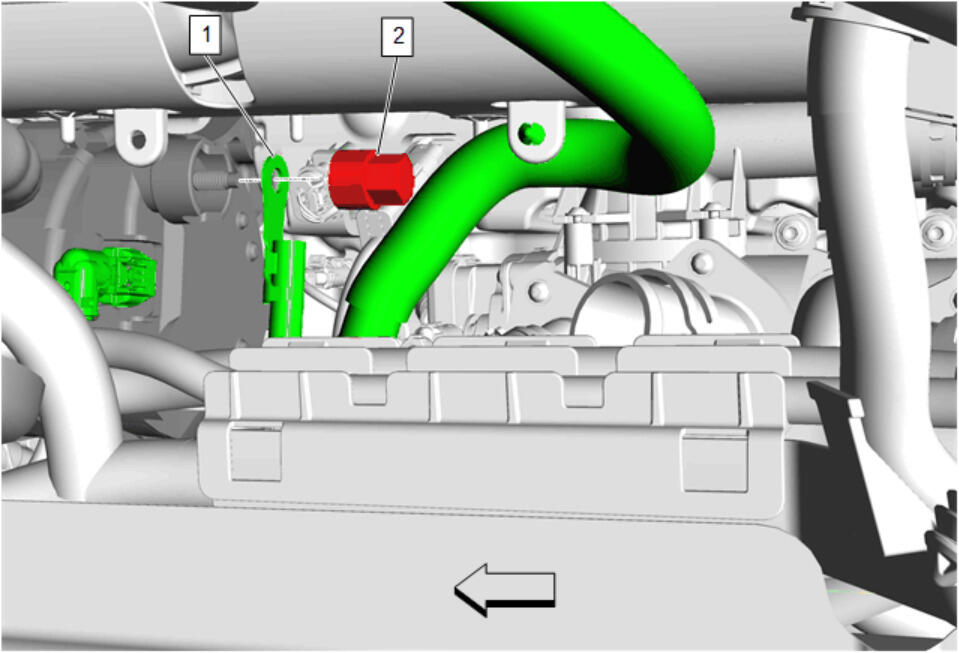

Auxiliary Generator Battery Jumper Cable Terminal Nut (2)@Starter Stud - Remove
- Auxiliary Generator Battery Jumper Cable(1) - Remove
- Lower the vehicle.

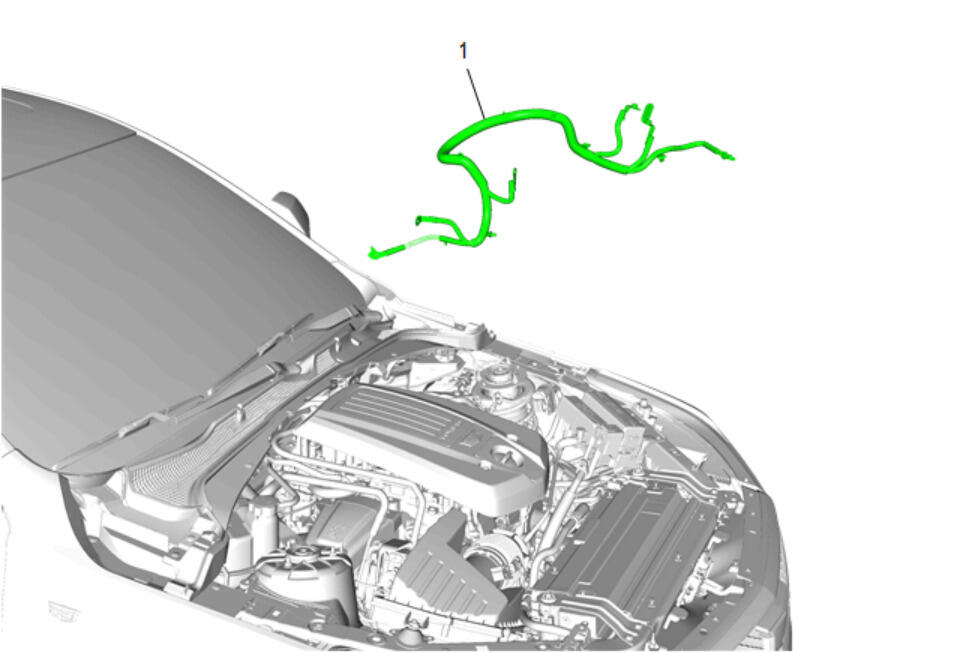

Auxiliary Generator Battery Jumper Cable(1) - Remove
