Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Auxiliary Generator Battery Jumper Cable(1) - Install
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Auxiliary Generator Battery Jumper Cable(1) - Install
- Auxiliary Generator Battery Jumper Cable Terminal Nut (2)@Starter Stud - Install and tighten - Fastener Specifications
Auxiliary Generator Battery Jumper Cable(3) - Install
- Battery Positive Cable Nut(2)@Starter Solenoid - Install and tighten - Fastener Specifications
- Electrical Connector(1) - Connect
Auxiliary Generator Battery Jumper Cable(1) - Install
- Battery Positive Cable Nut(2)@Generator - Install and tighten - Fastener Specifications

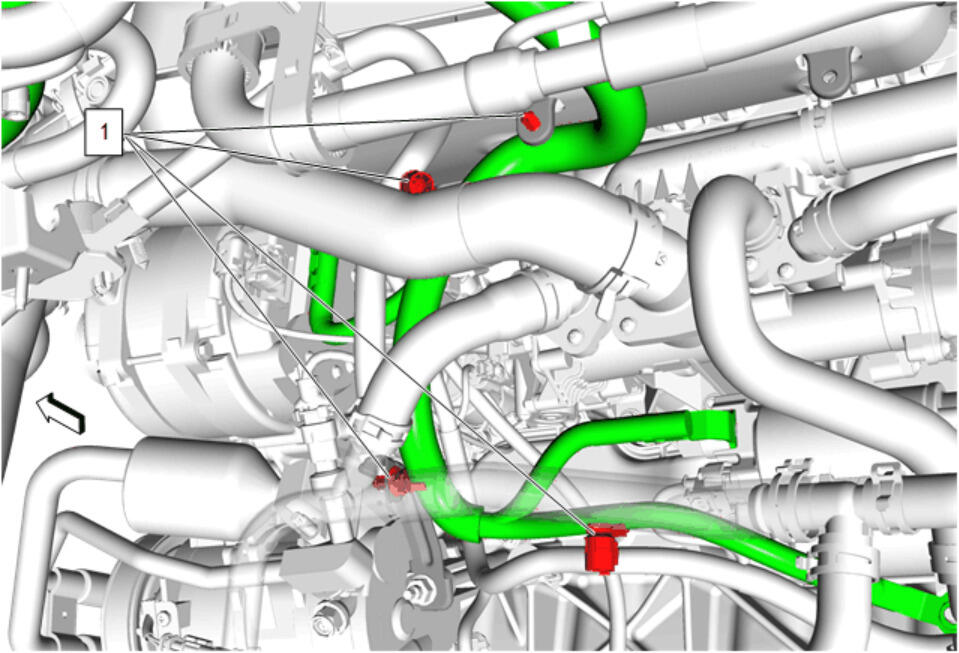

Retainer(1) - Engage[4x]
- Lower the vehicle.
Retainer(1) - Engage
Auxiliary Generator Battery Jumper Cable(6) - Install
- Auxiliary Generator Battery Jumper Cable Nut(2) - - Fastener Specifications
- Battery Positive Cable Nut(3) - Install - Fastener Specifications
- Battery Negative Cable Ground Bolt(4)@Front End Upper Tie Bar Extension - Install and tighten - Fastener Specifications
- Retainer(5) - Engage[3x]
- Fuse Block Cover(1) - Install
Radiator Inlet Hose(2)@Engine Coolant Flow Control Valve - Install
- Radiator Inlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Inlet Hose(3)@Radiator - Install
- Radiator Inlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose Clip(2) - Install
- Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716)Cooling System Draining and Filling (LSY Static Fill)Cooling System Draining and Filling (LSY with V03 Static Fill)Cooling System Draining and Filling (L3B Static Fill)Cooling System Draining and Filling (L3B GE 47716)Cooling System Draining and Filling (LSY with V03 GE 47716)Cooling System Draining and Filling (LF4 Static Fill)Cooling System Draining and Filling (LF4 GE 47716)
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
- Start the engine and check for coolant leaks.
CAUTION:
Refer to Fastener Caution
