Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging
  2. Relieve the fuel system pressure. Fuel Pressure Relief
  3. Drain the coolant. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
  4. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  5. Drain the engine oil. Engine Oil and Oil Filter Replacement (RWD) , or Engine Oil and Oil Filter Replacement (AWD)
  6. Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  7. GM5427523

    Air Cleaner Bolt (1) - Remove

  8. Air Cleaner Outlet Duct Clamp (2) - Loosen
  9. GM5427515

    Wiring Harness Retainer (1) @ Air Cleaner Assembly - Remove [4x]

  10. Positive Crankcase Ventilation Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  11. Evaporative Emission Canister Purge Tube (3) - Disconnect
  12. Electrical Connector (4) - Disconnect [2x]
  13. Remove the ground wire on the frame support.
  14. GM5427525

    Remove the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

  15. GM5335087

    Lift up on the front of the intake manifold cover (1).

  16. GM5335089

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

  17. GM5334198

    Positive Crankcase Ventilation Tube (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  18. Unclip and remove the retainer (2) from the engine.
  19. GM5080707

    Disconnect the quick disconnects and remove from the retainers (3). Plastic Collar Quick Connect Fitting Service

  20. Evaporative Emission Canister Purge Tube (2) - Remove
  21. GM5312713

    Heater Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  22. Heater Outlet Hose (2) @ Auxiliary Water Pump Inlet Pipe - Remove
  23. GM5312791

    Heater Inlet Hose Retainer (1) - Disengage

  24. Heater Inlet Hose (2) @ Engine Coolant Thermostat Housing Pipe - Remove
  25. GM5323484

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  26. Engine Coolant Air Bleed Hose (3) @ Engine Coolant Heater Exhaust Pipe - Remove
  27. GM5420763

    Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Outlet Pipe (3) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type

  28. Radiator Surge Tank Inlet Hose (2) @ Radiator Surge Tank Outlet Pipe (3) - Remove [2x]
  29. GM5312607

    Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Remove

  30. Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Remove
  31. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Remove
  32. GM5312610

    Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Remove

  33. Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Remove
  34. Radiator Surge Tank Outlet Pipe (3) - Remove
  35. GM5420297
    NOTE:

    The radiator, condenser and charge air cooler will be removed together with the engine and cradle.

    Remove the front 3 radiator air upper baffle retainers (1).

  36. Radiator Air Upper Baffle (2) - Reposition
  37. GM5427430

    Wiring Harness Retainer (1) - Remove

  38. Radiator Upper Bracket Bolt (3) - Remove [4x]
  39. Radiator Upper Bracket (2) - Remove [2x]

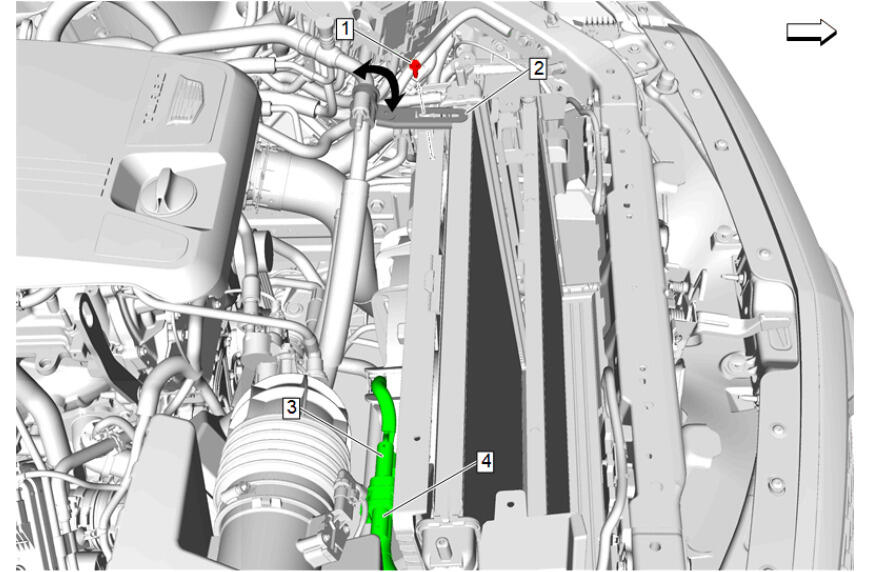

  40. GM5427476

    Engine Coolant Fan Electrical Connector (3) @ Forward Lamp Wiring Harness (4) - Disconnect

  41. GM5137012

    Electrical Connector (1) - Disconnect [3x]

  42. Retainer (2) @ Upper Intake Manifold Bracket (3) - Unclip
  43. Wiring Harness (4) - Reposition
  44. GM5137013

    Upper Intake Manifold Cover Bracket Bolt (1) @ Upper Intake Manifold Bracket (2) - Remove [2x]

  45. GM5137016

    Upper Intake Manifold Cover Nut (1) - Remove [2x]

  46. Upper Intake Manifold Bracket (2) - Remove
  47. GM5471127

    Air Conditioning Compressor Hose Nut (1) - Remove

  48. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Refrigerant Heat Exchanger - Remove
  49. Air Conditioning Evaporator Thermal Expansion Valve Seal (3) - Remove and DISCARD
  50. Air Conditioning Evaporator Tube Clip Bracket Bolt (4) - Remove
  51. Position the air conditioning refrigerant heat exchanger out of the way.
  52. GM5315482

    Air Conditioning Condenser Hose Nut (1) @ Air Conditioning Condenser - Remove

  53. Air Conditioning Condenser Tube Clip (2) - Remove
  54. GM5471158

    Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Remove

  55. Air Conditioning Compressor and Condenser Hose Seal (2) - Remove and DISCARD
  56. GM5471160

    Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Remove

    57. CAUTION:

    Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

  57. Air Conditioning Condenser Hose Seal (2) - Remove and DISCARD
  58. GM5471834

    Unfasten the radiator inlet hose clip (1), and position the radiator inlet hose (2) out of the way.

  59. GM5472013

    Disconnect the electrical connector. (1)

  60. GM5315475

    Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Compressor - Remove

  61. GM5460376

    Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Compressor - Remove

  62. Air Conditioning Evaporator Thermal Expansion Valve Seal (2) - Remove and DISCARD
  63. Air Conditioning Compressor Hose Seal (3) - Remove and DISCARD
  64. Maneuver the air conditioning evaporative connector hose/tube and compressor hose out of the engine compartment.
  65. GM5403825

    Fuel Feed Pipe (1) @ Fuel Pump - Disconnect - Metal Collar Quick Connect Fitting Service

  66. GM5439477

    Evaporative Emission Pipe (1) @ Evaporative Emission Canister Purge Pump (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

  67. Evaporative Emission Front Pipe (1) - Reposition away
  68. GM5314604
    NOTE:

    Nuts are captured with the wires.

    Battery Distribution Engine Compartment Fuse Block Cover (1) - Remove

  69. Battery Positive Cable Nut (6) - Remove
  70. Battery Positive Cable (7) - Remove
  71. Auxiliary Generator Battery Jumper Cable Nut (5) - Remove
  72. Auxiliary Generator Battery Jumper Cable (8) - Remove
  73. Engine Wiring Harness Conduit Nut (4) - Remove
  74. Engine Wiring Harness Conduit Nut (3) - Remove
  75. Engine Wiring Harness (9) - Remove [2x]
  76. Engine Wiring Harness Conduit Nut (2) - Remove [2x]
  77. Forward Lamp Wiring Harness (10) - Remove [2x]
  78. GM5314636

    Retaining Tab (1) - Disengage [2x]

  79. Battery Distribution Engine Compartment Fuse Block (2) - Remove
  80. GM5315620
    NOTE:

    Nut is captured with the wire.

    Battery Positive Cable Nut (1) - Remove

  81. Auxiliary Generator Battery Jumper Cable (2) - Remove
  82. Battery Positive Cable (3) - Remove
  83. GM5311887

    Retainer (1) - Disengage [2x]

  84. Engine Wiring Harness Fuse Block Cover (2) - Remove
  85. GM5314788

    Engine Wiring Harness Junction Block Bolt (1) - Remove

  86. Retaining Tab (3) - Disengage [4x]
  87. Engine Wiring Harness Junction Block (2) - Remove
  88. GM5315623

    Disengage the 2 retaining covers (2), and remove the 2 electrical connectors (1).

  89. GM5315648

    Disengage the 3 retaining tabs (1) from the body wiring harness junction block bracket (3) and remove the engine wiring harness fuse block bracket (2).

  90. GM5315881

    Body Wiring Harness Fuse Block Bracket Bolt (1) - Remove [2x]

  91. Remove harness retainers as needed.
  92. Body Wiring Harness Junction Block Bracket (2) - Remove
  93. GM5415995

    Disconnect the 3 electrical connectors (1) from the engine control module.

  94. Remove and disconnect the remaining engine harness from body harness as needed, and secure the engine harness to the engine.
  95. Raise and support the vehicle. Lifting and Jacking the Vehicle
  96. GM5396453

    Front Wheelhouse Liner Bolt (1) - Remove

  97. Engine Front Splash Shield Retainer - Remove [2x]
  98. Engine Front Splash Shield Bolt (3) - Remove
  99. GM5396496

    Front Wheelhouse Liner Bolt (3) - Remove

  100. Engine Front Splash Shield Retainer (2) - Remove [2x]
  101. Engine Front Splash Shield Bolt (1) - Remove
  102. GM5420502

    Front Compartment Air Deflector Bolt (1) - Remove [4x]

  103. Front Compartment Air Deflector (2) - Remove
  104. GM5423335

    Radiator Air Front Lower Baffle Retainer (1) - Remove [3x]

  105. GM5423336

    Radiator Air Front Lower Baffle (1) - Remove

  106. GM5424015

    Rear Tire Front Air Deflector Bolt (1) - Remove [2x]

  107. Rear Tire Front Air Deflector- Left Side (2) - Remove
  108. GM5400553

    Rear Wheelhouse Liner Screw (1) - Remove

  109. Underbody Rear Air Deflector Nut (2) - Remove [3x]
  110. Underbody Rear Air Deflector Bolt (3) - Remove [3x]
  111. Underbody Rear Air Deflector Nut (4) - Remove [2x]
  112. Underbody Rear Air Deflector- Left Side (5) - Remove
  113. GM5424018

    Rear Tire Front Air Deflector Bolt (1) - Remove [2x]

  114. Rear Tire Front Air Deflector- Right Side (2) - Remove
  115. GM5400642

    Rear Wheelhouse Liner Screw (1) - Remove

  116. Underbody Rear Air Deflector Bolt (2) - Remove [3x]
  117. Underbody Rear Air Deflector Nut (3) - Remove [3x]
  118. Underbody Rear Air Deflector Nut (4) - Remove [2x]
  119. Underbody Rear Air Deflector- Right Side (5) - Remove
  120. GM5400756

    Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Remove [6x]

  121. Floor Panel Reinforcement (2) - Remove
  122. GM5309188

    Catalytic Converter Nut (1) - Remove [2x]

  123. GM5309202

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Left Side (2) - Separate

  124. Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Left Side (3) - Separate
  125. GM5309211

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Right Side (2) - Separate

  126. Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Right Side (3) - Separate
  127. { If equipped } Electrical Connector @ Exhaust Control Valve Actuator - Disconnect
  128. GM5309214
    NOTE:

    With the aid of an assistant.

    Exhaust Muffler (1) - Remove

  129. Catalytic Converter Gasket (2) - Remove and DISCARD
  130. GM5309833

    Exhaust Heat Shield Bolt (1) - Remove [6x]

  131. Exhaust Intermediate Underbody Heat Shield (2) - Remove
  132. GM5334717

    Floor Panel Number 2 Cross Bar Reinforcement Bolt (1) - Remove [4x]

  133. Floor Panel Reinforcement (2) - Remove
  134. GM5507958

    Propeller Shaft Hub Clamp (1) - Remove and DISCARD

  135. GM5317835

    Mark (2) the relationship of the propeller shaft to the rear differential flange using a paint pen.

    136. CAUTION:

    When removing the propeller shaft, do not remove the propeller shaft coupler from the propeller shaft assembly. The only bolts that should be removed are those that mount each coupler to the transmission output flange, and to the rear drive axle input flange. Failure to properly remove the propeller shaft assembly may cause coupler damage, resulting in necessary replacement of the entire propeller shaft.

  136. Rear Propeller Shaft Nut (3) - Remove [3x]
  137. Rear Propeller Shaft Bolt (1) - Remove [3x]
  138. Support and secure the propeller shaft to a suitable hydraulic jack stand.
  139. GM5317838

    Propeller Shaft Bearing Support Bolt (1) - Remove [2x]

  140. GM5317841
    NOTE:

    Support brace will come with the propeller shaft.

    Propeller Shaft (1) - Remove

  141. GM5411943

    Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Remove [2x] - Hose Clamp Replacement Guidelines - Spring Type

  142. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) - Remove
  143. GM5411944

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Remove [2x] - Hose Clamp Replacement Guidelines - Spring Type

  144. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) - Remove
  145. GM5412364

    Transmission Fluid Auxiliary Cooler Bolt (1) - Remove [2x]

  146. GM5415576

    Transmission Fluid Auxiliary Cooler Bracket Nut (1) - Remove

  147. Automatic Transmission Fluid Cooling Exchanger (2) - Reposition
    148. WARNING:

    Provide additional support when a vehicle is on a hoist in the following ways:

    • Before removing parts, support the opposite end. This helps prevent the vehicle from slipping off.
    • Before removing major components, chain the vehicle frame to the hoist pads at the same end as the removal. This helps avoid a tip-off.

    Failure to follow these precautions could cause vehicle damage, serious personal injury, or death.

  148. Using suitable straps or chains, secure the vehicle to the hoist arms.
  149. GM5394612
    NOTE:

    Left side shown, right side similar.

    Front Tire Front Air Deflector Bolt (1) - Remove [8x]

  150. Front Tire Front Air Deflector (2) - Remove [2x]
  151. GM5421515
    NOTE:

    Left side shown, right side similar.

    Engine Front Splash Shield Bolt (1) - Remove [10x]

  152. Engine Front Splash Shield Retainer (2) - Remove [4x]
  153. Engine Front Splash Shield (3) - Remove [2x]
  154. GM5312762
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Bolt (1) - Remove [6x]

  155. Front Wheelhouse Liner Bolt (2) - Remove [10x]
  156. Front Wheelhouse Liner Retainer (3) - Remove [2x]
  157. GM5312788
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner Bolt (1) - Remove [4x]

  158. Front Wheelhouse Liner Retainer (2) - Remove [6x]
  159. Front Wheelhouse Liner (3) - Remove [2x]
  160. GM5399464

    { If equipped } Front Crossmember Brace Nut (1) - Remove [4x]

  161. { If equipped } Front Crossmember Brace (2) - Remove
  162. GM5318200

    Front Crossmember Brace Bolt- Right Side (1) - Remove [4x]

  163. Front Crossmember Brace Nut- Right Side (2) - Remove
  164. Front Crossmember Brace- Right Side (3) - Remove
  165. GM5317837

    Front Crossmember Brace Bolt- Left Side (1) - Remove [4x]

  166. Front Crossmember Brace Nut- Left Side (2) - Remove
  167. Front Crossmember Brace- Left Side (3) - Remove
  168. GM5326435
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link Nut- Lower (1) - Remove [2x]

  169. GM5326436
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link (1) @ Stabilizer Shaft - Remove [2x]

  170. GM5472805
    NOTE:

    Left side shown, right side similar.

    Front Wheel Speed Sensor Bolt (1) - Remove [2x]

  171. Front Wheel Speed Sensor (2) - Remove [2x]
  172. GM5430376
    NOTE:

    Left side shown, right side similar.

    Front Brake Caliper Bolt (2) - Remove [4x]

    173. CAUTION:

    Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

  173. Remove the brake caliper and support with heavy mechanics wire. (1) [2x]
  174. GM5448424
    NOTE:

    Left side shown, right side similar.

    Steering Knuckle Nut (1) - Remove [4x]

  175. Steering Knuckle Bolt (2) - Remove [4x]
  176. GM5335427

    Wiring Harness Retainer (1) - Disengage [6X]

  177. Turn the wheels of the vehicle back to the straight ahead position.
    178. CAUTION:

    Electrostatic discharge (ESD) can damage many solid-state electrical components. ESD susceptible components may or may not be labeled with the ESD symbol. Handle all electrical components carefully. Use the following precautions in order to avoid ESD damage:

    • Touch a metal ground point in order to remove your body's static charge before servicing any electronic component; especially after sliding across the vehicle seat.
    • Do not touch exposed terminals. Terminals may connect to circuits susceptible the ESD damage.
    • Do not allow tools to contact exposed terminals when servicing connectors.
    • Do not remove components from their protective packaging until required to do so.
    • Avoid the following actions unless required by the diagnostic procedure:
      • Jumpering or grounding of the components or connectors.
      • Connecting test equipment probes to components or connectors. Connect the ground lead first when using test probes.
    • Ground the protective packaging of any component before opening. Do not rest solid-state components on metal workbenches, or on top of TVs, radios, or other electrical devices.
    CAUTION:

    During removal and installation, all EPS components including mechanical and/or electrical is extremely susceptible to damage. Dropping or prying on any EPS component may cause internal damage. If damage occurs or a part is dropped, the EPS component must be replaced.

    CAUTION:

    Care must be taken during removal and installation of the Electronic Power Steering (EPS) components to not hit or break the EPS motor/controller module or module harness connectors. If the EPS motor/ controller module or module connectors are damaged, the complete component must be replaced.

    CAUTION:

    With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:

    • The steering column
    • The intermediate shaft (s)
    • The steering gear

    After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.

  178. Lower the vehicle.
  179. With the wheels of the vehicle in the straight ahead position, LOCK the steering column.
  180. Raise the vehicle.
  181. GM5336153

    Mid Intermediate Steering Shaft Bolt (2) - Remove

  182. Separate the mid intermediate steering shaft from the intermediate steering shaft by pushing the upper portion of the intermediate shaft (1) downward.
  183. GM5336440

    Intermediate Steering Shaft Lower Bolt (1) - Remove

  184. GM5336424

    Intermediate Steering Shaft (1) - Remove

  185. GM5471853

    Automatic Transmission Range Selector Lever Cable Bolt (1) - Remove

  186. Remove the automatic transmission range selector lever cable (2) from the automatic transmission range selector lever cable bracket.
  187. GM5471847

    Slide the automatic transmission range selector locking ring (1) in the direction of the arrow to access the automatic transmission range selector cable retainer (2).

  188. Using a flat bladed tool, release the automatic transmission range selector cable retainer (2) then remove the automatic transmission range selector cable (3) from the automatic transmission range selector lever (4).
  189. Position the powertrain support table underneath the vehicle.
  190. GM5541631

    Lower the vehicle until the powertrain (1) rests lightly on the GE-52200  Powertrain and Battery Lifter (2).

  191. Secure the powertrain to the GE-52200  Powertrain and Battery Lifter (2) using straps and binders around the transmission and cradle.
  192. GM5538431

    Drivetrain and Front Suspension Cradle Front Bolt (1) - Remove [4x]

  193. Drivetrain and Front Suspension Cradle Rear Bolt (2) - Remove [2x]
  194. GM5427472

    Transmission Mount Bracket Bolt (1) - Remove [4x]

  195. GM5427478

    Transmission Mount Bolt (1) - Remove [2x]

  196. Transmission Mount (2) - Remove
  197. Ensure when raising the body the following items are clear from the frame:
    • Vacuum lines
    • Steering knuckles
    • Electrical wiring harnesses
  198. With the aid of the assistant raise the body from the drivetrain and front suspension cradle.
  199. Disconnect and reposition both heated oxygen sensor electrical connector.
  200. GM5309985

    Turbocharger Heat Shield Bolt (1) - Remove [3x]

  201. GM5309997

    Turbocharger Heat Shield (1) - Remove

  202. GM5310138

    Catalytic Converter Heat Shield Bolt (1) - Remove [2x]

  203. Catalytic Converter Heat Shield Nut (2) - Remove
  204. GM5310178

    Catalytic Converter Heat Shield (1) - Remove

  205. GM5310876

    Catalytic Converter Brace Bolt (1) - Remove

  206. GM5310881

    Catalytic Converter Brace Bolt (1) - Remove

  207. GM5310863

    Exhaust Pipe Clamp (1) - Remove and DISCARD

  208. GM5525783

    Warm Up Three-Way Catalytic Converter (1) - Remove

  209. Catalytic Converter Gasket (2) - Remove and DISCARD
  210. GM5311076

    Catalytic Converter Brace Bracket Bolt (1) - Remove [2x]

  211. Catalytic Converter Brace Bracket (2) - Remove
  212. GM5333497

    Disconnect the electrical connector. (1)

  213. Release the retainers. (2)
  214. Disconnect the transmission vent hose from the engine.
  215. Remove the engine harness from the engine so it can be transferred to the new engine.
  216. GM5071195

    Retainer Spring (1) - Release

  217. Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
  218. GM5314511

    Retainer Spring (1) - Release

  219. Charge Air Cooler Inlet Air Tube (2) @ Compressor Air Intake Turbocharger (3) - Remove
  220. GM5313262

    Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  221. Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Remove
  222. GM5313295

    Radiator Outlet Hose Clamp (1) @ Engine - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  223. Radiator Outlet Hose (2) @ Engine - Remove
  224. GM5430387

    Engine Coolant Temperature Indicator Switch Connector (1) @ Engine Coolant Temperature Sensor (2) - Disconnect

  225. Throttle Inlet Absolute Pressure Sensor - Disconnect
  226. Engine Radiator - Remove
  227. GM5129599

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise and hold.

  228. GM5129786

    Accessory Drive Primary Belt (1) - Remove

  229. Slowly release tension on the drive belt tensioner.
  230. GM5395328

    Remove the generator (1) and transfer the generator lower mounting bolt (2) to the NEW generator, if necessary.

  231. GM5335764

    Oil Level Indicator (1) - Remove

  232. GM5136547

    Oil Level Indicator Tube Bracket Bolt (2) - Remove

  233. GM5068106

    Oil Level Indicator Tube (1) - Remove

  234. Oil Level Indicator Tube Seal (2) - Remove and DISCARD
  235. GM5319715

    Starter Stud (1) - Remove

  236. Starter Bolt (2) - Remove [2x]
  237. Starter (3) - Remove
  238. Mark the torque converter to flex plate orientation to ensure proper realignment.
  239. GM5342773

    Repeat the following steps for all torque converter bolts (1):

    1. Rotate the harmonic balancer center bolt clockwise ONLY, to align the torque converter bolt with the starter opening.
    2. Torque Converter Bolt (1) - Remove [6x]
  240. GM5129535

    Remove the 2 left side thermostat bypass pipe bolt (2).

  241. Disconnect the transmission vent hose from the engine.
  242. GM5508846

    Transmission Bolt (2) - Remove [2x]

  243. Transmission Stud (1) - Remove
  244. GM5508848

    Transmission Bolt (2) - Remove [4x]

  245. Transmission Stud (1) - Remove [2x]
  246. GM5323001

    Remove harness bolt prior to installing the lift bracket in this location.

  247. EN-36857  Engine Lift Bracket Set (1) - Install
    248. CAUTION:

    Refer to Fastener Caution .

  248. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  249. GM5598887

    EN-36857  Engine Lift Bracket Set (1) - Install

  250. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  251. Install a suitable lifting chain and lifting hoist to the EN-36857  Engine Lift Bracket Set (1) just enough to take tension off the Engine Mounts.
  252. Using the GE-52200  Powertrain and Battery Lifter, unlock the table slide and separate the engine and transmission.
  253. Install the J-21366  Converter Holding Strap onto the transmission bell housing to retain the torque converter.
  254. GM5335541

    Engine Mount Nut- Left Side (1) - Remove

  255. GM5335537

    Engine Mount Nut- Right Side (1) - Remove

  256. Remove the engine from the GE-52200  Powertrain and Battery Lifter using a suitable engine hoist.
  257. GM5090647

    Transfer the engine (1) to a J-36854  Engine Stand (2) or approved shipping container.

  258. GM5336818

    Engine Mount Bracket Bolt (1) - Remove and DISCARD [3x]

  259. Engine Mount Bracket- Left Side (2) - Remove
  260. GM5541638

    Engine Mount Bracket Bolt (1) - Remove and DISCARD [4x]

  261. Engine Mount Bracket- Right Side (2) - Remove
  262. GM5135894

    Disconnect the electrical connector at the sensor.

  263. Positive Crankcase Ventilation Hose Connector Bolt (1) - Remove [2x]
  264. Retainer (2) - Unclip [2x]
  265. Positive Crankcase Ventilation Hose (3) - Remove
  266. Positive Crankcase Ventilation Hose Fitting Seal (4) - Remove and DISCARD [2x]
  267. GM4961570

    Ignition Coil Bolt (1) - Remove [8x]

  268. Ignition Coil (2) - Remove [4x]
  269. GM5049385

    Clamp (1) - Remove - Hose Clamp Replacement Guidelines - Spring Type

  270. Turbocharger Coolant Feed Pipe Bracket Bolt (3) - Remove
  271. Turbocharger Coolant Feed and Return Pipe (4) @ Engine Coolant Thermostat Housing Inlet Pipe (2) - Remove
  272. GM5049386

    Clamp (2) - Remove - Hose Clamp Replacement Guidelines - Spring Type

  273. Turbocharger Coolant Feed Pipe Bracket Bolt (3) - Remove
  274. Turbocharger Coolant Feed and Return Pipe Bolt (5) - Remove [2x]
  275. Turbocharger Coolant Feed and Return Pipe (4) @ Engine Coolant Heater Exhaust Pipe (1) - Remove
  276. Turbocharger Coolant Feed and Return Pipe (4) - Remove
  277. Turbocharger Coolant Feed and Return Pipe Gasket (6) - Remove and DISCARD
  278. GM5541642

    Remove the compressor air intake turbocharger and lines as an assembly.

  279. Remove the 2 oil feed pipe bolts (4).
  280. Remove the oil feed pipe bolt (5).
  281. Remove and DISCARD the 4 turbocharger bolt (2).
  282. Remove the compressor air intake turbocharger (3).
  283. Remove and DISCARD the turbocharger heat shield (1).
  284. Remove and DISCARD the turbocharger oil feed pipe gasket (7).
  285. Remove and DISCARD the turbocharger oil feed pipe seal ring (6).
  286. GM5067948

    Water Pump Inlet Pipe Bolt (5, 6) - Remove [2x]

  287. Clamp (1, 3) - Remove [2x] - Hose Clamp Replacement Guidelines - Spring Type
  288. Water Pump Inlet Pipe (2) @ Water Pump (4) - Remove
  289. Water Pump Inlet Pipe (2) @ Engine Coolant Air Bleed Pipe (7) - Remove
  290. Water Pump Inlet Pipe (2) - Remove
  291. GM5129570

    Engine Coolant Thermostat Housing Inlet Pipe Bolt (1) - Remove [3x]

  292. GM5129572

    Engine Coolant Thermostat Housing Inlet Pipe (2) - Remove

  293. Water Inlet Gasket (1) - Remove and DISCARD
  294. GM5541652

    Water Pump Bolt (4) - Remove [3x]

  295. Water Pump (3) - Remove
  296. GM5068210

    Wiring Harness Clip (4) @ Evaporative Emission Canister Purge Pump Bracket - Unclip

  297. Evaporative Emission Canister Purge Pump Bolt (1, 3) - Remove [3x]
  298. Evaporative Emission Canister Purge Pump (2) - Remove
  299. GM5541656

    Retainer @ Intake Manifold - Unclip

  300. Intake Manifold Bolt (3) - Remove [7x]
  301. Remove the intake manifold and throttle body as and assembly (2).
  302. Intake Manifold Seal (1) - Remove and DISCARD
  303. GM5541662

    Clamp (1) - Remove [3x] - Hose Clamp Replacement Guidelines - Spring Type

  304. Engine Oil Cooler Bolt (3) - Remove [4x]
  305. Engine Oil Cooler Seal (2) - Remove and DISCARD [2x]
  306. Engine Oil Cooler (4) - Remove
  307. GM4962310

    Engine Coolant Heater Exhaust Pipe Bracket Bolt (2) - Remove

  308. Clamp (1) - Remove - Hose Clamp Replacement Guidelines - Spring Type
  309. GM5323487

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Remove

  310. GM5323492

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Remove [3x]

  311. Engine Coolant Heater Exhaust Pipe (2) - Remove
  312. Engine Coolant Manifold Gasket (3) - Remove and DISCARD
  313. GM5323488

    Engine Coolant Air Bleed Pipe Bolt (1) - Remove

  314. Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  315. Engine Coolant Heater Exhaust Pipe (3) @ Engine Coolant Flow Control Valve - Remove
  316. GM5125429

    Engine Coolant Air Bleed Pipe Bolt (1) - Remove [2x]

  317. GM5125430

    Engine Coolant Air Bleed Pipe (1) - Remove

  318. Engine Coolant Manifold Gasket (2) - Remove and DISCARD
  319. GM5541666

    Air Conditioning Compressor Bolt (1) - Remove

  320. Air Conditioning Compressor Nut (2) - Remove
  321. Air Conditioning Compressor Bolt (3) - Remove
  322. Air Conditioning Compressor (4) - Remove
  323. Air Conditioning Compressor Stud (5) - Remove
  324. GM5541821

    Drive Belt Tensioner Bolt (1) - Remove

    325. NOTE:

    Twist out toward where the air conditioning compressor sits.

  325. Drive Belt Tensioner (2) - Remove
  326. GM4966906

    Engine Coolant Flow Control Valve Bolt (1) - Remove [4x]

  327. GM4966911

    Engine Coolant Flow Control Valve (1) - Remove

  328. Water Outlet Seal (2) - Remove and DISCARD
  329. GM5422918

    Fuel Pump Shield Bolt (1) - Remove [3x]

  330. Fuel Pump Cover (2) - Remove
  331. GM4967233
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Pump Insulator (1) - Remove

  332. GM5314508

    Fuel Injection Fuel Feed Pipe Bolt (1) - Remove

  333. Fuel Feed Intermediate Pipe (2) - Remove and DISCARD
  334. GM4967228
    CAUTION:

    Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage

    Fuel Pump Bolt (4) - Remove [2x]

  335. Fuel Pump (1) - Remove
  336. Fuel Pump Seal (3) - Remove and DISCARD
  337. Valve Lifter Follower (2) - Remove
  338. GM4995197

    Wiring Harness (2) @ Fuel Injection Fuel Rail Insulator (1) - Remove

    339. WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

  339. Fuel Injection Fuel Rail Insulator (1) - Remove
  340. GM4995278

    Electrical Connector (2, 3) - Disconnect [2x]

  341. Fuel Injection Fuel Rail Bolt (1) - Remove [4x]
  342. GM4995383
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Use care to avoid contact with the fuel rail harness during special tool installation and fuel rail removal.

    Install the 2 studs (2) from EN-49248  remover to the fuel injection fuel rail bolt holes and hand tighten.

  343. Install the EN-49248  remover 4) onto each stud (2) and engage the hooks to the fuel injection fuel rail.
  344. Install and tighten the 2 nuts (1, 3).
  345. GM4995505
    NOTE:
    • Turn BOTH handles simultaneously, in small, even increments.
    • Do NOT twist the fuel injector fuel rail while removing.

    Rotate the handles (1) from the EN-49248  remover and remove the fuel injection fuel rail (2).

  346. EN-49248  Remover, Injector Rail Assembly - Remove
  347. Fuel Injector Nozzle Housing Seal - Remove and DISCARD [8x]
  348. GM5299624

    Remove the knock sensor bolt (1).

  349. Remove the knock sensor (2).
  350. GM5299629

    Remove the knock sensor bolt (1).

  351. Remove the knock sensor (2).
  352. GM5521720

    Positive Crankcase Ventilation Oil Separator Cover Bolt (1) - Remove [11x]

  353. GM5020637

    Positive Crankcase Ventilation Oil Separator Cover (1) - Remove

scientia non olet · About LEMON Manuals
