Terminal Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Using a small screwdriver, push down on the Terminal Position Assurance (TPA) locks one at a time to remove the TPA from the connector.

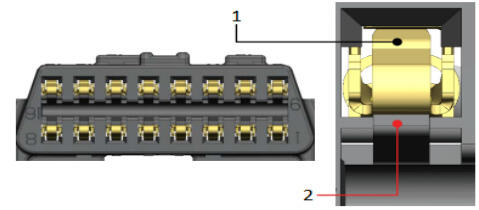

- Once the TPA has been fully removed, locate and release the connector flex lock (2) using the terminal removal tool J-38125 - 12A.
While terminal release tool is inserted, gently pull on the wire to remove it from the connector housing.
