Terminal Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The wire tie MUST be cut above wire cover tab to prevent damage to wires.

Remove the wire cover by carefully cutting the wire tie with side cutters.
Courtesy of GENERAL MOTORS COMPANY

Move the cam lever to the middle position.
Courtesy of GENERAL MOTORS COMPANY

Unlock the back side of the wire cover. Using a small screwdriver, carefully pry the sides of the cover out (1) and upward (2) to move it past the cover locks.
Courtesy of GENERAL MOTORS COMPANY

Lift the cover and pull it away from the locking lever to remove it completely.
Courtesy of GENERAL MOTORS COMPANY

Once the cover is removed, push the TPA to the released position by inserting the terminal removal tool J-38125-211 into the slot on the connector.
Courtesy of GENERAL MOTORS COMPANY

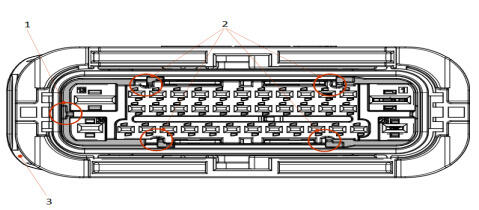

Verify TPA (1) is in correct positions using these call outs in the picture above.

1.5Terminals

Courtesy of GENERAL MOTORS COMPANY

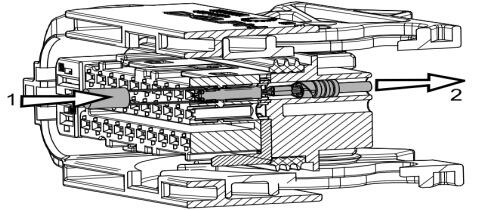

Locate the terminal removal access holes at the front of the connector. Insert removal tool EL-38125-560-A straight into the access holes to deflect the terminal locking tabs. With the terminal unseated, gently pull on the wire to remove it from the connector.

2.8 Terminals

Courtesy of GENERAL MOTORS COMPANY

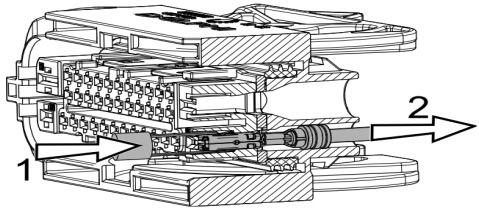

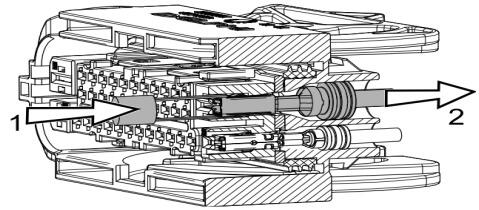

Locate the terminal removal access holes at the front of the connector. Insert removal tool J-38125-36 straight into the access holes to deflect the terminal locking tabs. With the terminal unseated, gently pull on the wire to remove it from the connector.
