Connector Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
When properly disengaging the connector it will lift away from the mating component.

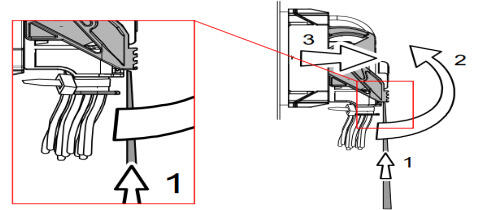

Insert a small screwdriver under locking lever (1). Rotate the cam lever all the way forward (2) to fully release it.
 Courtesy of GENERAL MOTORS COMPANY
|
Gently pull the connector off the component.
