Terminal Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
1.5 Terminals
- NOTE:
There are 2 different types of TPAs for this connector series shown in the figures above step 2.
Release the TPA by using a small pair of needle nose pliers to grab the TPA.
- Gently pull the TPA back approximately 5.0 mm until the TPA is in the released position.

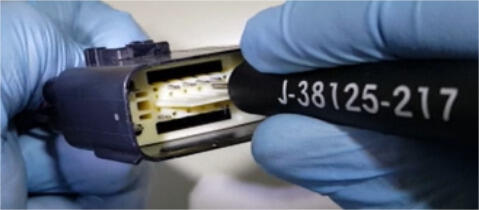

- Gently insert the terminal removal tool J-38125-217 into the terminal service hole for the terminal being serviced.
- Push straight down into the hole to release the terminal locking tab. Prying is not required.
Once the locking tab is released, gently pull on the wire to remove the terminal from the connector.
2.8 Terminals
- NOTE:
There are 2 different types of TPAs for this connector series shown in the figures above step 2.
Release the TPA by using a small pair of needle nose pliers to grab the TPA.
- Gently pull the TPA back approximately 5.0 mm until the TPA is in the released position.

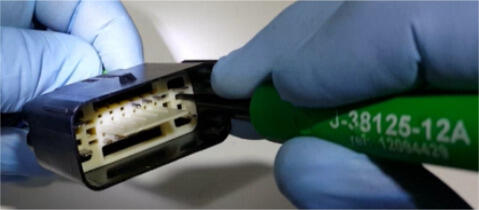

- Gently insert the terminal removal tool J-38125-12A into the terminal service hole of the terminal being serviced
- Push straight down into the hole to release the terminal locking tab. Prying is not required.
Once the locking tab is released, gently pull on the wire to remove the terminal from the connector.
