Terminal Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The removal and installation procedure for the 1.5 and 2.8 terminals are the same.

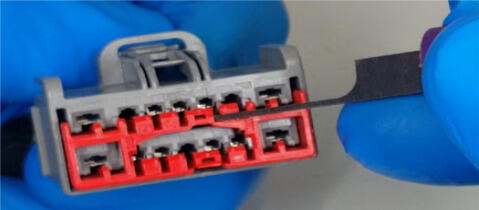

Release the terminal position assurance (TPA) by using a small screwdriver to pry the TPA up and away from the connector body, until fully released as shown above.

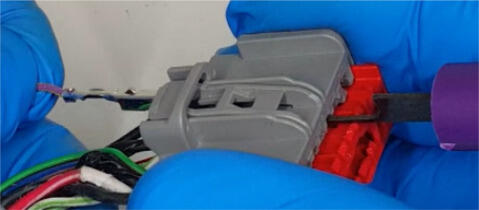

Gently insert removal tool J-38125-215A into the terminal service hole of the terminal being serviced as shown above.
- Push straight down into the hole to release the terminal locking tab.
Once the locking finger is disengaged, gently pull on the wire to remove the terminal from the connector.
