Terminal Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

1.5 Terminals

Courtesy of GENERAL MOTORS COMPANY

Insert a small flat blade screwdriver into the front of the connector To release the TPA.
Courtesy of GENERAL MOTORS COMPANY

Spread the arms of the mating lever so that it can be rotated back to the front.
Courtesy of GENERAL MOTORS COMPANY

Remove the wire tie from the connector, being careful not to damage any wires.
Courtesy of GENERAL MOTORS COMPANY

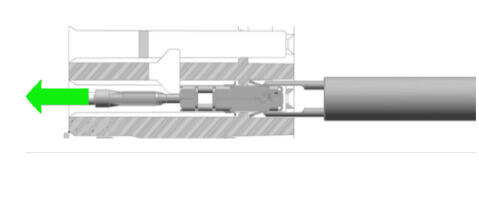

Insert the J-38125-560A removal tool straight into the front of the cavity. Deflect the terminal tangs to unseat the terminal and gently pull on the wire to remove the terminal from the connector.

2.8 Terminals

Courtesy of GENERAL MOTORS COMPANY

Insert a small flat blade screwdriver into the front of the connector To release the TPA.
Courtesy of GENERAL MOTORS COMPANY

Spread the arms of the mating lever so that it can be rotated back to the front.
Courtesy of GENERAL MOTORS COMPANY

Remove the wire tie from the connector, being careful not to damage any wires.
Courtesy of GENERAL MOTORS COMPANY

Insert the J-38125-212 removal tool straight into the front of the cavity. Deflect the terminal tangs to unseat the terminal and gently pull on the wire to remove the terminal from the connector.
