Connector Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

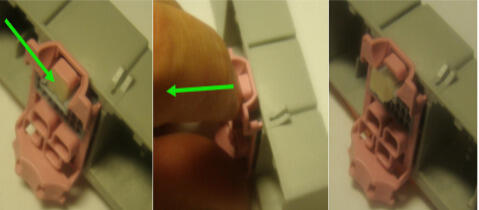

  1. GM5647543Courtesy of GENERAL MOTORS COMPANY

    Slide the CPA to the released position by sliding it away from the component.

  2. GM5647567Courtesy of GENERAL MOTORS COMPANY

    While depressing the connector latch, gently pull the connector from the component.
